Acme RMDDU

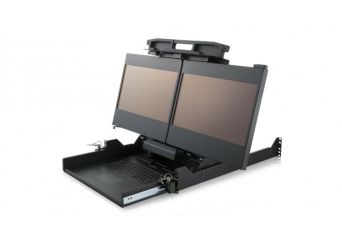

The RMDDU is a rugged 2U rack-mount drawer with dual-screen LCD monitors The displays fold together, rotate, and slide in for storage.
Производител: Acme-Portable
Производител: Acme-Portable
The RMDDU is a rugged 2U rack-mount drawer with dual-screen LCD monitors The displays fold together, rotate, and slide in for storage.
It is an ideal match in military transit case applications and command & control centers. The compact 2U rack-mount display drawer uses a secure all-aluminum monitor mounting and stabilization design necessary for robust government & defense, communications and industrial automation applications.
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddACME-RMDDU-BTOAcme Rugged DisplayOut of stock Warranty: 0,00 €-- ACME-RMDDU-BTOAcme Rugged DisplayAvailability: Out of stockNet price:--
Description
Technical Specification
| PRODUCT | RMDDU 17 |
|---|---|
| DISPLAY | DUAL 17.3" FULL HD 1920 X 1080, 16:9 DISPLAY |
| VIEWING ANGLE | DISPLAYS TILT ~15° FROM VERTICAL |
| PORTS | 2X USB 2.0 INPUTS ON FRONT + 2X USB 2.0 INPUTS ON REAR ANALOG VGA, DVI-D, DISPLAY PORT |
| POWER SUPPLY | 115/230 VAC, 50/60HZ, 100W MAX |
| KEYBOARD & MOUSE | 101 KEYS BACKLIT KEYBOARD WITH TOUCHPAD AND ADJUSTABLE BRIGHTNESS. RESISTIVE TOUCHPAD |
| DIMENSIONS | HEIGHT: 2U (3.46") WIDTH: 17.76" DEPTH: 25.89" RACK DEPTH: 24" |
| WEIGHT | ~42 LBS |
| TEMPERATURE | MIL-STD-810E (501.4, 502.4), OPERATING: 0 ~ 50°C, NON-OPERATING: -40 ~ 70°C |
| HUMIDITY | MIL-STD-810E (507.2), RELATIVE HUMIDITY: 5% TO 95% OPERATING, NON-CONDENSING |
| ALTITUDE | MIL-STD-810E (500.3), OPERATING: 15,000 FT (4571.8 M), NON-OPERATING: 40,000 FT (12,192 M) |
| VIBRATION | MIL-STD-810E (514.4) OPERATING: 10 TO 500 HZ 1.04 G (RMS) |
| SHOCK | MIL-STD-810E (516.4), OPERATING: 15 G, 8 MS 1/2 SINE, NON-OPERATING: 40 G, 8 MS 1/2 SINE |
| DROP | 4" STAND ALONE, 39" TRANSIT DROP IN TRANSIT CASE |
| REGULATION | CE, FCC, ROHS, CCC |
| WARRANTY | 1 YEAR PARTS AND LABOR |
