AIM-68H

Medical Grade Tablet | 10.1" FHD 800 nits | IP65

Display: 10.1" FHD 800 nits
Weight: 1.1 kg
Dimensions: (W, D, H): 280 x 18.3 x 180.1 mm
Resistance: IEC60068-2-27, IEC60068-2-64, 1.2 m drop, IP65
Operating Temperature: from 0°C to 40°C
RAM: 8 GB
Memory: NVMe SSD 128GB/256GB
System: Windows
Guarantee: 24 months

Изчерпан

Безплатна доставка от €100

Promocja cenowa na model HDR-15-5

Продукт, предназначен само за професионална употреба

Описание
Basic parameters
Техническа спецификация
Download
Препоръчани продукти

AIM-68H

Описание

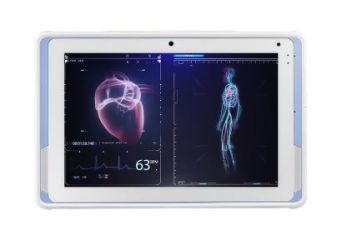

AIM-68H – 10.1″ Fully-Rugged Medical / Industrial Tablet

1. Performance that Powers Service Apps & Edge AI

Driven by an Intel® Alder Lake-N CPU, fast RAM and a 128 / 256 GB NVMe SSD, the AIM-68H delivers smooth operation for:

service and diagnostic software,
edge-AI workloads,
industrial or medical control systems.

2. Readable in OR Lighting & Daylight

The 10.1″ WUXGA (1920 × 1200) panel offers 800 nits brightness with anti-glare and anti-fingerprint coatings. Corning® Gorilla® Glass adds scratch resistance.

3. Wi-Fi 6E & 5G-Ready Connectivity

Wi-Fi 6E & Bluetooth® for high-speed onsite data,
optional LTE / 5G for fully mobile deployments,
remote fleet control via DeviceOn / iService.

4. Certified Rugged for Medical Use

IP65 – sealed against dust and water jets,
IEC 60068-2-27 / -64 – shock & vibration tested,
drop-resistant from 1.2 m / 4 ft,
EN / UL 60601-1 – EMC safety in healthcare environments.

5. Ergonomics & Data Security

Weighs just ≈ 1.1 kg and measures 280 × 18.3 × 180.1 mm, perfect for bedside arms. An integrated 1D/2D scanner and NFC speed up patient or asset ID, while TPM 2.0 safeguards sensitive data.

6. Long-Term Service & Support

A standard 24-month warranty (extendable) plus Advantech long-life service contracts keep deployments reliable for years.

Basic parameters

Processor	Intel Alder Lake-N	Water & Dust Resistance	IP65
Display	10.1″ WUXGA, 800 nits, anti-glare	Connectivity	Wi-Fi, Bluetooth, optional LTE/5G
Storage	NVMe SSD 128 / 256 GB	Certifications	EN/UL 60601, IEC60068-2-27 / -2-64
Drop Resistance	1.2 m drop tested	Security	TPM 2.0, NFC, 1D/2D scanner
Dimensions & Weight	280 × 18.3 × 180.1 mm, ~1.1 kg	Warranty	24 months, extendable

Техническа спецификация

Key Specifications

Operating System	Windows 10 IoT Enterprise (Windows 11 / Linux optional)
Processor & Memory	Intel® Pentium® N4200, 4 cores up to 2.5 GHz 8 GB DDR5 RAM
Storage	M.2 NVMe SSD 128 GB (256 GB optional)
Display	10.1″ IPS LCD, 1920 × 1200 (WUXGA) Brightness 800 cd/m² Corning® Gorilla® Glass 3 Anti-Fingerprint & Anti-Glare 10-point P-CAP touch • Modes: Normal, Glove
Communications	Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Bluetooth® 5.3 NFC 13.56 MHz – ISO 15693 / 14443 A/B, FeliCa
Standard I/O Ports	1 × USB-C 3.1 (Charging & DP) 1 × USB-A 3.1 1 × Audio combo jack
Extended I/O	14-pin pogo (USB 2.0, UART, 5 V / 1 A) 16-pin docking pogo (USB 3.0, 12 V power)
Audio	2 × Water-proof speakers (2 W) Audio combo jack
Cameras	Rear – 13 MP AF + LED flash Front – 5 MP fixed focus
Sensors	Ambient Light • E-Compass • G-Sensor • Gyroscope
Power	Smart battery – 46.31 Wh, LED gauge ≈ 5.5 h runtime • < 3 h charge USB-C 20 V / 3.25 A • Dock 12 V / 2 A
Buttons	Power • Volume ± • 1 × Programmable key
Environmental	Operating: 0 – 40 °C / 32 – 104 °F Storage: –20 – 60 °C / –4 – 140 °F Drop 1.2 m • IEC 60068-2-27/-64 shock & vibration IP65 ingress protection
Security	TPM 2.0 hardware security
Mechanical	Dimensions 280 × 18.3 × 180.1 mm (11 × 0.7 × 7.1 in) Weight ≈ 1.1 kg / 2.4 lb Colour White / Blue
Certifications & Warranty	FCC • CE • UKCA • IEC/EN/UL 60601-1 • EN 60601-1-2 • TELEC • VCCI • CCC • RCM • IC 2-year standard warranty
