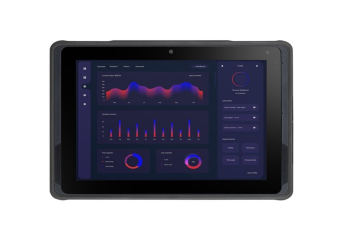

Aim-68S

Fully-Rugged Tablet | 10.1" FHD 380/800 nits | IP65 | Android / Windows

Производител: Advantech

Display: 10.1" FHD 380 nits (optional 800 nits)
Weight: approx. 1.1 kg
Dimensions (W, D, H): 280 x 18.3 x 180.1 mm
Resistance: IP65, 1.2 m drop, MIL-STD-810G
Operating Temperature: –10°C to +50°C
RAM: 4 GB (optional 8 GB)
Memory: 128 GB / 256 GB NVMe SSD
System: Windows or Android
Guarantee: 24 months

Изчерпан

Безплатна доставка

Promocja cenowa na model HDR-15-5

Продукт, предназначен само за професионална употреба

Описание
Basic parameters
Техническа спецификация
Download
Препоръчани продукти

Aim-68S

Описание

AIM-68S – Fully Rugged 10.1″ Tablet for Logistics, Field Service & Mobile Teams

Why AIM-68S?

• One device – two OS choices: Windows IoT for industrial apps or Android for inspection and data-capture workflows.
• FHD display offered in 380- or 800-nit options—sun-readable on the loading dock, in-cab, or on the factory floor.
• IP65 ingress protection, IEC 60068-2-27/-64 shock & vibration, 1.2 m drop—built to survive dust, rain, and daily knocks.

Key Business Benefits

Reduced downtime – hot-swappable battery with on-board fuel gauge keeps the tablet running a full shift.
Flexible connectivity – Wi-Fi 6-class, Bluetooth 5, optional LTE/5G & GPS; stay online even beyond the warehouse.
Rapid integration – Micro HDMI, Micro USB 3.0, plus pogo-pin docking for vehicle, desktop, or VESA mounts.
Enterprise-grade security – TPM + BitLocker (Windows) or FBE + Google Play Protect (Android); remote lock & wipe via DeviceOn/iService.

Modular Expansion

A single expansion port lets you add a 1D/2D barcode scanner, NFC/RFID reader, or specialist I/O without replacing your fleet. AIM-68S scales with your workflow—from inbound receiving and inventory to field maintenance.

Quick Specs

Display: 10.1″ FHD (1920 × 1200), 380 / 800 nits, Gorilla Glass 3
CPU: Intel Alder Lake-N or ARM (Android), model-dependent
Memory: 8 GB RAM, 128 / 256 GB NVMe SSD
Ruggedness: IP65, 1.2 m drop, –10 °C … +50 °C
Battery: hot-swappable with SOC indicator
Weight & Size: ~1.1 kg • 280 × 18.3 × 180.1 mm
Warranty: 24 months (extendable)

Ready for Your Challenges

Whether you’re orchestrating yard operations at a container terminal, servicing critical infrastructure, or managing stock in a distribution center, AIM-68S delivers the durability, performance, and scalability today’s businesses demand.

Basic parameters

Processor	Intel platform / Android compatible	Water & Dust Resistance	IP65
Display	10.1" FHD (1920 × 1200), 380 or 800 nits (HB), Gorilla Glass 3	Connectivity	Wi-Fi, Bluetooth 5, optional LTE + GPS
Battery	Hot-swappable battery with capacity meter	Certifications	MIL-STD-810G (shock, vibration)
Storage	64 GB eMMC / 128 GB NVMe SSD	Accessories	Docking stations (VESA, desktop, vehicle), barcode module
Drop Resistance	1.2 m drop resistance	Customization	Barcode scanner, modular pogo expansions

Техническа спецификация

Key Specifications

Processor & Memory	Intel® Processor N200 @ 3.7 GHz (SKU-A / SKU-B) Intel® Processor N50 @ 3.4 GHz (SKU-C / SKU-D) 8 GB LPDDR5 Optional: integrated 1D/2D barcode reader (SKU-B & SKU-D) TPM 2.0 hardware security OS : Windows 11 IoT Enterprise (GAC ready)
Storage	M.2 NVMe SSD 128 GB • Options: 256 GB
Display	10.1″ FHD LCD • 1920 × 1200 (WUXGA) Brightness : 380 nits Corning® Gorilla® Glass 3 • 10-pt P-CAP touch
Wireless & NFC	Wi-Fi 6 / 6E (802.11 a/b/g/n/ac/ax) + Bluetooth® 5.3 NFC 13.56 MHz – ISO 15693 / 14443 A/B, FeliCa
I/O Connectivity	Std. ports : 1 × USB-C 3.1 (Charging & DP), 1 × USB-A 3.1 AIM 14-pin pogo (USB 2.0, UART, 5 V / 1 A) AIM 16-pin dock (USB 3.0 + 12 V power) Audio combo jack
Cameras	Front – 5 MP, fixed focus Rear – 13 MP, autofocus + LED flash
Sensors	Ambient-light • E-Compass • G-sensor • Gyroscope
Power	Smart Li-ion 11.55 V / 4010 mAh (46.3 Wh) –≈ 5.5 h run-time* Charge < 3 h • USB-C 20 V / 3.25 A • Dock 12 V / 2 A LED status : Full (green) • Charging (blue) • Low ≤ 10 % (orange)
Rugged Features	IP65 • drop-tested 1.2 m (4 ft) onto plywood Shock & vibration : IEC 60068-2-27 / -2-64 Operating : –10 to +50 °C • Storage : –20 to +60 °C Humidity : 95 % RH @ 40 °C (non-condensing)
Dimensions & Weight	280 × 18.3 × 180.1 mm • 1.1 kg (2.4 lb)
Certifications	FCC • CE • CB • UL • TELEC • VCCI • BSMI • NCC • CCC • SRRC • RCM • IC
