APAX-5017H
Описание

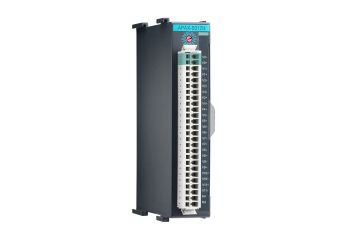

APAX-5017H is a 12-ch high speed analog input module that provides programmable input ranges on each channel. It offers a high sampling rate with up to 1000 samples a second per channel. This high performance analog input module features high density I/O with a flexible topology and hot-swappable functionality.
- 12 analog input channels (12-bit, 1000 sample/second per channel)
- Supports various input types: 0 ~ 500 mV, ±10 V, 0 ~ 10 V, 0 ~ 20 mA, 4 ~20 mA
- Each input channel can be configured with different input types and range
- 2500 VDC optical isolation between channels and backplane bus
- ±35 VDC over voltage protection
- Wire burnout detection for 4~20 mA current input
