ARK-11

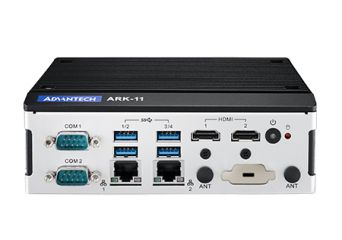

Intel Celeron N3350 DC SoC with 4K Dual HDMI/Dual LAN/M.2 DIN-Rail Fanless Box PC
Производител: Advantech
Производител: Advantech
- Intel Celeron N3350 Dual Core 1.1 GHz
- DIN-Rail system with essential I/O ports on front-side bezel
- I-Grade 4G DDR3L memory and 64G SSD built-in
- Windows 10 IoT Enterprise built-in
- 60W adaptor bundled in the accessory box
- Dual HDMI display up to 4K resolution
- 1 x full-size mPCIe with SIM holder and 1 x M.2 2230 for WIFI
- 12V ~ 28V wide range power input
- -30 ~ 70 °C extended operating temperature
- Advantech WISE-PaaS/DeviceOn support
Изчерпан
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употребаОписание
Intel Celeron N3350 DC SoC with 4K Dual HDMI/Dual LAN/M.2 DIN-Rail Fanless Box PC
Техническа спецификация
| Part Number | ARK -11-S1A3 |
| Processor | |
| CPU | Intel Celeron N3350 Dual Core SoC |
| Frequency | 1.1GHz ,turbo burst 2.4GHz |
| Core Number | 2 |
| BIOS | AMI EFI 64Mbit |
| Memory | |
| Technology | DDR3L 1866MHz |
| Max .Capacity | 8GB,1x 4GBmemory (-40-85°C )built -in |
| Socket | 2x 204-pin SO -DIMM |
| Graphics | |
| Chipset | Intel HD Graphics 500,CPU integrated |
| Graphic Engine | Gen9 Low Power ;18Execution Units Media Codec Supported :H.264 , MPEG2 ,MVC ,VC -1,WMV9 ,H.265 /HEVC ,VP8 ,JPEG /MJPEG ,3DHW Acceleration : |
| OpenGL 4.4,DirectX 12,OpenCL *2.0 | |
| HDMI | HDMI1 :3840x 2160@30HZ;HDMI2 :3840x 2160@30Hz |
| Dual Display | HDMI1 +HDMI2 |
| Ethernet | |
| LAN1 | 10/100/1000Mbps Intel i210 GbE ,support Wake On Lan |
| LAN2 | 10/100/1000Mbps Intel 1210GbE ,support Wake on LAN |
| Audio | |
| Interface | Realtek ALC888S ,High Definition Audio ,Line -out ,Mic -in |
| I/0 | |
| Serial port | 2x RS -232/422/485with auto flow control ,COM2 with 5V/12Vpower supply |
| USB | 4x USB 3.0 |
| GPIO | 8-bit Programmable DIO (Optional ) |
| Expansion | |
| Mini PCle | 1x Full -size mPCle with SIM holder |
| M.2 | 1x M.2 2230E key for WIFI module |
| Storage | |
| 2.5"HDD /SSD | 1x 2.5"64GMLC SSD (-40-85°C )built -in |
| mSATA | 1x Full -size mSATA (*share with mPCIe slot ) |
| Others | |
| Watchdog timer | 255levels timer interval ,setup by software |
| Software Support | |
| Microsoft Windows | Windows 10IoT Enterprise built -in |
| Linux | Support by project |
| Power | |
| Power Type | AT /ATX |
| Input Voltage | 12~28VDC |
| Power Adaptor | AC to DC ,24V/2.5A60Wadaptor built -in |
| Power Consumption | |
| Typical | 6.4W |
| Max | 18.1W |
| Mechanical | |
| Construction | Aluminum housing |
| Mounting | DIN -rail /Wall Mount |
| Dimensions | 53.5x 158x 114mm (2.11"x 6.22"x 4.49") |
| Weight | 1.2kg (2.65lb) |
| Environment | |
| Operational Temperature | With extended temp .peripherals :-30-70°C (-22158°F )with 0.7m /s air flow ,with 2.5inch hard disk :0-40°C (32-104°F )with 0.7m /s air flow |
| Storage Temperature | -40~85°C (-40~185°F ) |
| Relative Humidity | 95%@40°C (non -condensing ) |
| Vibration during Operation | With SSD :3Grms ,IEC 60068-2-64,random ,5~500Hz ,1hr /axis |
| Shock During Operation | With SSD :30G ,IEC 60068-2-27,half sine ,11ms duration |
| Certification | |
| EMC | CE /FCC Class B ,CCC ,BSMI |
| Safety Certifications | UL 62368,CB 62368,CCC ,BSMI |
Download
