ARK-1124H

• Intel Atom E3940 Quad Core SoC
• Dual HDMI independent display support 4k2k resolution
• 1 x Full-size miniPCIe with SIM holder for communication module
• 1 x M.2 E Key for WIFI module
• 1 x 2.5" SATA III SSD/HDD and 1 x mSATA
• TPM built in for well security
• -20 ~ 60 °C extended operating temperature
• 12V lockable DC jack power input
• Optional 12~24V power module (Dual Layer)
• Advantech iDoor module compatible (Dual Layer)
• Advantech WISE-DeviceOn support

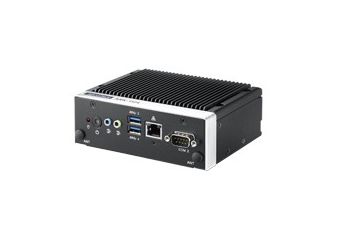

ARK-1124U

• Intel Celeron N3350 Dual Core SoC
• VGA Display/2x RS-232/422/485/4x USB 3.0
• 1 x Full-size miniPCIe with SIM holder for communication module
• 1x M.2 E-key for WIFI module
• -20 ~ 60 °C extended operating temperature
• TPM 2.0 default built-in
• 12V lockable DC jack power input
• Optional 12~24V power module (Dual Layer)
• Advantech iDoor module compatible (Dual Layer)
• Advantech WISE-DeviceOn support

ARK-1124C

• Intel® Celeron™ N3350 Dual Core SoC
• VGA Display, 4 x RS-232/422/485, 2 x USB3.0
• 1 x full-size miniPCIe for communication module
• 1 x 2.5" SATA III drive bay and 1 x half-size mSATA
• -20 ~ 60 °C extended operating temperature
• 12V lockable DC jack power input
• Optional 12~24V power module (Dual Layer)
• Advantech iDoor module compatible (Dual Layer)
• Advantech WISE-DeviceOn support
