ARK-1125C
Compact industrial computer for edge applications. Intel® Atom®, DDR5-4800
Производител: Advantech
Производител: Advantech
- Processor: Intel® Atom® Processor x7211E Dual Core SoC
- Memory: DDR5-4800 SO-DIMM up to 16 GB
- Communication Ports: Four serial ports
- Expansions: M.2 E Key, B Key and M Key for installation of storage and wireless modules
- Security: TPM for system security, optional
- Operating temperature: Extended operating temperature range from -30 to 60 °C
- Power supply: 12V lockable DC plug
- Management support: Advantech DeviceOn
Цена от 611,00 € без данък
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddARK-1125C-S0A1Intel Atom x7211E w/ COM x4 USB x4 HDMI LAN x1Out of stock Warranty: 611,00 €751,53 €Login to check your price ARK-1125C-S0A1Intel Atom x7211E w/ COM x4 USB x4 HDMI LAN x1Availability: Out of stockNet price:611,00 €
Description

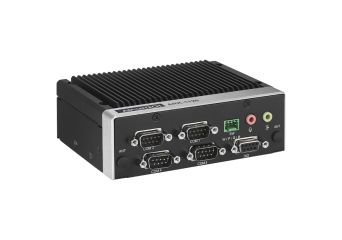

The ARK-1125C is a highly functional, compact industrial computer designed for applications requiring robust performance and reliability in harsh environments. With an advanced Intel® Atom® x7211E processor, the machine is capable of efficiently managing tasks in industrial, automation and control applications.
Four serial ports and a variety of M.2 expansion options provide flexibility in hardware configuration, allowing installation of additional memory and wireless modules. Additional system security is possible with an optional TPM module, making it suitable for applications requiring enhanced data security.
Optimized device management through Advantech DeviceOn enables easy system monitoring and management, which is key in environments where remote device management is required.
Technical Specification
| ARK-1125C | |
| Processor | Atom x7211E, Dual core |
| RAM | up to 16 GB DDR5 |
| VGA (DSub) | - |
| HDMI | 1 |
| Audio | Line in, Line out |
| Gigabit Ethernet | 1 |
| 2,5" HDD | - |
| mSATA | - |
| M.2 | 1x M.2 2230 E key (PCIe x1), 1x M.2 2280 B key (SATA, PCIe x1), 1x M.2 2242 M key (SATA, PCIe x1) |
| USB 3.2 | 2 |
| USB 2.0 | 2 |
| RS-232/422/485 | 4 |
| GPIO | 8-bit Programmable DIO |
| CANBus | - |
| miniPCIe | - |
| TPM | built-in SLB9672XU2.0 FW15.22 |
| Working temperature | -30°C ~ +60°C |
