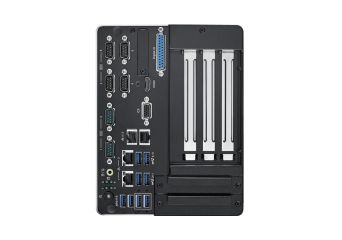

ARK-3532C
Intel® 10th Gen Xeon® W / Core™ i LGA1200 Expansion Fanless Box PC
Производител: Advantech
Производител: Advantech
- Support Intel® 10th Gen. Xeon® W and Core™ i3/i5/i7/i9 processor
- Triple independent display: VGA + HDMI + Optional Display
- DDR4 SO-DIMM ECC/non-ECC memory support up to 64 GB
- 12-36VDC wide range power input
- Up to 4sets 2.5" hard drive bays, support Intel® SW RAID
- Support 4GbE, 8USB, 6COM
- No RED Certification
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddARK-3532C-00A1Intel CML W480E PCIex4+2*PCI, 12-36VOut of stock Warranty: 1 085,00 €1 334,55 €Login to check your price ARK-3532C-00A1Intel CML W480E PCIex4+2*PCI, 12-36VAvailability: Out of stockNet price:1 085,00 €
Description
Support Intel® 10th Gen. Xeon® W and Core™ i3/i5/i7/i9 processor Triple independent display: VGA + HDMI + Optional Display DDR4 SO-DIMM ECC/non-ECC memory support up to 64 GB 12-36VDC wide range power input Up to 4sets 2.5" hard drive bays, support Intel® SW RAID Support 4GbE, 8USB, 6COM.
Technical Specification
| Part Number | ARK-3532C-00A1 |
| Processor | |
| CPU | Intel Xeon W -1290TE/Intel Core i9 10900E/Intel Core i7 10700E/Intel Core i5 10500E/Intel Core i3 10 |
| L3 Cache | 20MB/20MB/16MB/12MB/6MB/2MB |
| Core Number | 10/10/8/6/4/2 |
| Chipset | W480E |
| Memory | |
| Technology | DDR4 2933MHzSO -SIMM |
| Max Capacity | 64GB |
| Socket | 2x 260pin SO -DIMM |
| Graphics | |
| Chipset | Intel UHD Graphics 630 |
| Graphic Engine | Direct x 12,OpenGL 4.4,HW Encode :H.265 /HEVC ,H.264 /MPEG -4AVC ,MPEG -2,JPEG /MJPEG and VP8 ,HW De |
| MPEG -2,VC -1/WMV9 ,JPEG /MJPEG ,VP8 and VP9 | |
| Display | |
| VGA | 1920x 1200at 60Hz |
| HDMI | 1 |
| Triple Display | Yes |
| Ethernet | |
| LAN | 10/100/1000Mbps |
| Other | |
| Watchdog Timer | 255levels timer interval ,setup by software |
| Expansion | |
| Mini PCle | 1x Full -size Mini PCle (1x support mSATA ,1x support SIM holder )#1 |
| M.2 | 1x M.2 2230E key for WIFI module |
| PCI | 2 |
| PCI Express x 4 | 1 |
| Storage | |
| HDD | HDD 2x 2.5"SATAIII 15mmheight HDD bay support Intel SW RAID (Up to 4x 2.5"SATAIII HDD bays by option |
| mSATA | mSATA 1x mSATA socket (Share with Mini PCle ) |
| Software Development Kit | |
| Operating System | Windows 10(64bit) |
| Linux | by Project support |
| Power Requirement | |
| Power Type | AT /ATX |
| Voltage | 9-36VDC in |
| Power Consumption | |
| Typical | 30W |
| Max | 64.8W |
| Regulation | |
| EMC | CE /FCC Class B ,CCC ,BSMI |
| Safety | CB ,UL ,CCC ,BSMI |
| Environment | |
| Operational Temperature | With extended temp peripherals :-20~60°C with 0.7m/s air flow ,with HDD :0~40°C with 0.7m/s air flow |
| Temperature (Storage ) | -40~85°C (-40-185°F ) |
| Relative Humidity | 95%@40°C (non -condensing ) |
| Vibration during Operation | With mSATA /SSD :3Grms ,IEC 60068-2-64,random ,5~500Hz ,1hr /axis |
| Shock Protection | With CompactFlash disk :30Grms,IEC 60068-2-27,half sine ,11ms duration |
| Humidity | Operating :40°C @95%relative humidity ,non -condensing |
