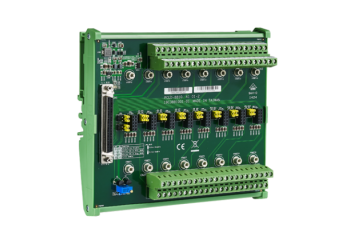

PCLD-8810

68-pin SCSI DIN-rail Wiring Board with CJC

16-single-ended or 8 differential AI inputs, programmable
On-bard CJC circuit for direct thermocouple measurement
Reserved space for signal-conditioning circuit such as PCLD-8811
Industrial-grade screw-clamp terminal blocks for heavy-duty and reliable connections
DIN-rail mounting case for easy mounting
Supports PCI-1710U/UL/HGU, PCI-1711U/UL, PCI-1716/L, PCI-1741U, PCI-1742U, PCIE-1810, PCIE-1816/H

Изчерпан

Безплатна доставка от €100

Promocja cenowa na model HDR-15-5

Продукт, предназначен само за професионална употреба

Описание
Препоръчани продукти

PCLD-8810

Описание

The PCLD-8810I is designed to match multifunction cards with 68-pin SCSI-II connectors, such as the PCI-1710/1710L/1710HG/1710HGL/1711/1711L/1716/1716L/1741U/1742U cards. PCLD-8810E is designed to match multifunction cards with 68-pin SCSI-II connectors, such as the PCIE-1810/1816/1816H cards. This screw-terminal board also includes cold junction sensing circuitry that allows direct measurements from thermocouple transducers. Together with software compensation and linearization, every thermocouple type can be accommodated.
Due to its special PCB layout, you can install the PCLD-8811 to construct your own signal-conditioning circuits. The PCLD-8811 is an 8-order low-pass filter that can be programmable by jumper.

16-single-ended or 8 differential AI inputs, programmable
On-bard CJC circuit for direct thermocouple measurement
Reserved space for signal-conditioning circuit such as PCLD-8811
Industrial-grade screw-clamp terminal blocks for heavy-duty and reliable connections
DIN-rail mounting case for easy mounting
Supports PCI-1710U/UL/HGU, PCI-1711U/UL, PCI-1716/L, PCI-1741U, PCI-1742U, PCIE-1810, PCIE-1816/H
