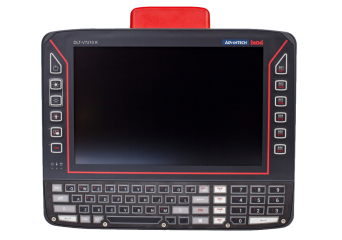

DLT-V7210 K/KD

Terminal VMT 10" with integrated keyboard / Windows or Android

Производител: Advantech
Производител: Advantech
  • Intel® Atom™ E3845 quad-core, 1.91 GHz, with 4 GB RAM
  • 10.1" widescreen WXGA color TFT display with 1280 x 800 resolution and 500 cd/m² brightness
  • Abrasion-resistant PCT touchscreen with defroster (KD version), ideal for cold storage applications
  • Superior wireless connectivity and roaming capabilities
  • Full IP65 rating for water and dust resistance, and 5M3 certification for shock and vibration tolerance
  • Wide operating temperature range (-30 ~ 50 °C/-22 ~ 122 °F)
  • Integrated keyboard for convenient data input and wide key spacing to prevent keyboard from icing
  • Optional uninterruptible power supply
  • Certified with SOTI, Navis N4.3.6

Product out of stock

Free shipping from €300

Вижте 1 модел

Promocja cenowa na model HDR-15-5

Models

  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    DLT-V7210KF-BTO
    Fully rugged Vehicle-Mounted Terminal
    Out of stock Warranty:
    0,00 €
    -
    -
    DLT-V7210KF-BTO
    Fully rugged Vehicle-Mounted Terminal
    Availability: Out of stock
    Net price:
    -
    -

Description

DLT-V7210 K is a rugged vehicle-mounted terminal with integrated keyboard designed for logistics applications and to provide maximum system uptime. Powered by an Intel®Atom™ E3845 quad-core, 1.91 GHz, processor with 4 GB RAM, DLT-V7210 K supports a wide operating temperature range (-30 ~ 50 °C/-22 ~ 122 °F) to withstand operation in extreme industrial environments. The low-profile antenna offers excellent transmission capabilities in a compact form factor. Furthermore, the integrated user-friendly keyboard offers convenient operation and efficient data input. Meanwhile, the 10.1" widescreen WXGA color TFT display with flexible touch control ensures easy input and reduces input failures.

DLT-V7210 KD is a rugged vehicle-mounted terminal with integrated keyboard designed for logistics applications and to provide convenient operation and efficient data input. The 10.1" widescreen WXGA color TFT display with PCT touchscreen can be also equipped with defroster, which is ideal for cold chain and cold storage applications. Designed for industrial applications, DLT-V7210 KD is 5M3 certified for shock and vibration tolerance, IP65-rated for water and dust resistance, and built with an IK08-certified touchscreen for high durability.

Technical Specification



Touch screen

Sunlight readable projective capacitive touch screen (PCT)

Multi-touch, touch sensitivity via Config Tool adjustable

Communication

Wi-Fi IEEE 802.11 a/b/g/n; optional

Ethernet 10/100/1000 Mbit/s

Bluetooth, optional

Power Supply (internal)

12/24/48 VDC, nominal voltages

Automatic switch-on, switch-off function via vehicle ignition

UPS, optional (typically 20 min); battery-lifetime may vary depending on use case

Environment

IP65 protection class

Relative humidity 10 to 90 % @ 40 °C, non condensing

Shock/ vibration: class 5M3 according to EN 60721-3-5, MIL-STD 810F (US Highway Truck)

Operating temperature: -30 bis +50 °C (-22°F to +122°F)

Shock and resistance touchscreen: IK 08

CPU

Intel® Atom™ E 3827 Quad Core, 1.91 GHz with 4 GB RAM

Operating system

MS Windows® 10 IoT Enterprise, MS Windows® 7 Professional

MS Windows® Embedded 8.1 Industry Pro, WES7, WE8S

Linux Debian-based, IGEL Linux

Android 7.1.2
