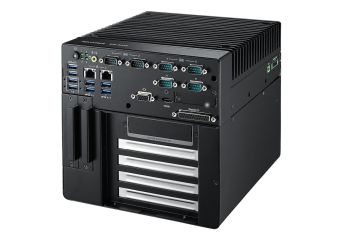

EIS-S232

Edge Cloud Solution with Multi-cloud Integration for Centralized Data and Device Management

Производител: Advantech

High-performance edge cloud server with Intel® Xeon® W-1290TE and 10 cores up to 4.5Ghz
Open and standard structure: Kubernetes (MicroK8S) built-in, multiple DB connections, and on-demand micro-services
Integrated IoT software for private cloud deployment, platform management, and application integration
Sustainable management — condition monitoring, load balancing, and self-healing
Integrated iEdge Server dashboard for front-/back-end management

Изчерпан

Безплатна доставка от €100

Promocja cenowa na model HDR-15-5

Продукт, предназначен само за професионална употреба

Описание
Техническа спецификация
Download
Препоръчани продукти

EIS-S232

Описание

EIS-S232 is integrated with Kubernates(MicroK8S) to support microservices, and build-in complete back-end software components. EIS-S232 also provide dynamically scaled out function, user can extend resources if necessary. It helps customers create IoT applications more easily and flexibly.

Техническа спецификация

Part Number	EIS-S232-U20STB1	EIS-S232-01DSTB1	EIS-S232-01DS281
Processor
CPU	Intel Xeon W -1290TE	Intel Core i7 10700E	Intel Core i3 10100E
Chipset	W480E	W480E	W480E
Memory
Socket	2x 260pin SO -DIMM	2x 260pin SO -DIMM	2x 260pin SO -DIMM
Technology	DDR4 2666MHZSO -DIMM	DDR4 2933MHZSO -SIMM	DDR4 2933MHZSO -SIMM
ECC Support	Yes	N /A	Yes
Capacity	32GB	No	No
Graphics
Chipset	Intel UHD Graphics 630	Intel UHD Graphics 630	Intel UHD Graphics 630
Graphic Engine	Direct x 12,OpenGL 4.4,HW Encode :	Direct x 12,OpenGL 4.4,HW Encode :	Direct x 12,OpenGL 4.4,HW Encode :
	H.265 /HEVC ,H.264 /MPEG -4AVC ,MPEG -2,	H.265 /HEVC ,H.264 /MPEG -4AVC ,MPEG -2,	H.265 /HEVC ,H.264 /MPEG -4AVC ,MPEG -2,
	JPEG /MJPEG and VP8 ,HW Decode :	JPEG /MJPEG and VP8 ,HW Decode :	JPEG /MJPEG and VP8 ,HW Decode :
	H.265 /HEVC ,H.264 /MPEG -4AVC ,MPEG -2,VC	H.265 /HEVC ,H.264 /MPEG -4AVC ,MPEG -2,VC	H.265 /HEVC ,H.264 /MPEG -4AVC ,MPEG -2,VC
	1/WMV9 ,JPEG /MJPEG ,VP8 and VP9	1/WMV9 ,JPEG /MJPEG ,VP8 and VP9	1/WMV9 ,JPEG /MJPEG ,VP8 and VP9
Display
VGA	1920x 1200at 60Hz	1920x 1200at 60Hz	1920x 1200at 60Hz
HDMI	1	1	1
Ethernet
LAN	10/100/1000Mbps	10/100/1000Mbps	10/100/1000Mbps
Expansion
Mini PCle	1x Full -size Mini PCIe (1x support mSATA ,1x	1x Full -size Mini PCle (1x support mSATA ,1x	1x Full -size Mini PCIe (1x support mSATA ,1x
	support SIM holder )#1	support SIM holder )#1	support SIM holder )#1
M.2	1x M.2 2230E key for WIFI module	1x M.2 2230E key for WIFI module	1x M.2 2230E key for WIFI module
PCI Express x 16	PCI -E x16 graphics card slot	PCI -E x16 graphics card slot	PCI -E x16 graphics card slot
PCI	2	2	2
iDoor Module	1set (Optional )	1set (Optional )	1set (Optional )
Storage
HDD	HDD 2x 2.5"SATAIII 15mmheight HDD bay	HDD 2x 2.5"SATAIII 15mmheight HDD bay	HDD 2x 2.5"SATAIII 15mmheight HDD bay
	support Intel SW RAID (Up to 4x 2.5"SATAIII	support Intel SW RAID (Up to 4x 2.5"SATAIII	support Intel SW RAID (Up to 4x 2.5"SATAIII
	HDD bays by optional AMK -A0035 )	HDD bays by optional AMK -A0035 )	HDD bays by optional AMK -A0035 )
mSATA	mSATA 1x mSATA socket (Share with Mini PCIe )	mSATA 1x mSATA socket (Share with Mini PCIe )	mSATA 1x mSATA socket (Share with Mini PCIe )
Capcity	1TB	No storage	No storage
Operating System
Microsoft Windows	Windows 10	Windows 10	Windows 10
Ubuntu	V	V	V
Power Requirement			<
Power Type	AT /ATX	AT /ATX	AT /ATX
Voltage	12-36VDC in	12-36VDC in	12-36VDC in
Power Consumption
Typical	30W	30W	30W
Max .	64.8W	64.8W	64.8W
Regulation
EMC	CE /FCC Class B ,CCC ,BSMI	CE /FCC Class B ,CCC ,BSMI	CE /FCC Class B ,CCC ,BSMI
Safety	CB ,UL ,CCC ,BSMI	CB ,UL ,CCC ,BSMI	CB ,UL ,CCC ,BSMI
Environment
Operational Temperature	With extended temp peripherals :-20~60°C with	With extended temp peripherals :-20~60°C with	With extended temp peripherals :-20~60°C with
	0.7m/s air flow ,with HDD :0~40°C with 0.7m/s air flow	0.7m/s air flow ,with HDD :0~40°C with 0.7m/s air flow	0.7m/s air flow ,with HDD :0~40°C with 0.7m/s air flow
Temperature (Storage )	-40~85°C (-40~185°F )	-40~85°C (-40~185°F )	-40-85°C (-40-185°F )
Relative Humidity	95%@40°C (non -condensing )	95%@40°C (non -condensing )	95%@40°C (non -condensing )
Vibration during Operation	With mSATA /SSD :3Grms ,IEC 60068-2-64,	With mSATA /SSD :3Grms ,IEC 60068-2-64,	With mSATA /SSD :3Grms ,IEC 60068-2-64,
	random ,5-500Hz ,1hr /axis	random ,5-500Hz ,1hr /axis	random ,5-500Hz ,1hr /axis
Shock Protection	With CompactFlash disk :30Grms,IEC 60068-2	With CompactFlash disk :30Grms,IEC 60068-2	With CompactFlash disk :30Grms,IEC 60068-2
	27,half sine ,11ms duration	27,half sine ,11ms duration	27,half sine ,11ms duration
Humidity	Operating :40°C @95%relative humidity ,non condensing	Operating :40°C @95%relative humidity ,non condensing	Operating :40°C @95%relative humidity ,non condensing
Others
TPM	TPM 2.0	None	None
