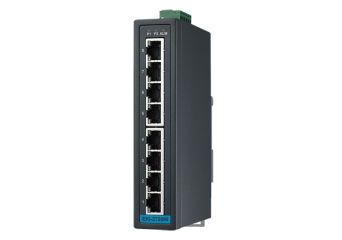

EKI-2728NI

8 Gigabit Unmanaged Ethernet Switch with PROFINET

Provides 8 Gigabit Ethernet ports with Auto MDI/MDI-X
Supports 10/100/1000 Mbps Auto Negotiation
Supports jumbo frame transmission up to 9kbytes
Provides Slim size, DIN-rail with IP30 metal mechanism
Supports Redundant 12 ~ 48 VDC power input and ALM Relay
Enhanced traffic prioritization for automation protocols
Supports PROFINET Conformance-Class A

Цена от €201.00 нетна цена

Висока цена? Влезте в профила си и купете на по-ниска

Изчерпан

Безплатна доставка от €100

Вижте 1 модел

Promocja cenowa na model HDR-15-5

Продукт, предназначен само за професионална употреба

Модели
Описание
Download
Препоръчани продукти

EKI-2728NI

Модели

Модел	Наличност	Гаранция	Wishlist	Вашата цена	Вашата цена	Items Quantity Добави
EKI-2728NI-A 8-port Ind. Unmanaged GbE Switch W/T	Изчерпан	Гаранционен срок:		€201.00 €247.23 Влезте, за да проверите цената си	Влезте, за да проверите цената си	бр.

EKI-2728NI-A

8-port Ind. Unmanaged GbE Switch W/T

Наличност: Изчерпан

Нетна цена:

€201.00

Влезте, за да проверите цената си

Описание

The EKI-2728 supports Gigabit Ethernet. The power is a +12 ~ 48 VDC redundant input design, and is secured with a double protection mechanism: Power Polarity Reverse Protect and an Overload Current Fuse. The former tolerates reverse power wiring while the later secures the system from overload currents. Each port of EKI-2728 has 2 LED’s to show the link status transmission speed and collision status. It also provides a relay output for an event alarm. In the event of a power failure, the built-in LED will activate the alarm to notify administrators. Engineers can simply verify the hardware status by checking the LED, and have troubleshooting easily and quickly. EKI-2728 comes with compact metal housing that rates IP30 to help against from dusty industrial environments. To enhance traffic prioritization for automation protocol with PROFINET PTCP filter that ensure a reliable communication on PROFINET networds.
