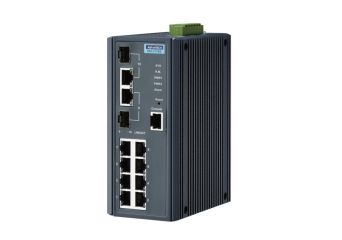

The EKI-7710G-2CP/2CPI supports eight Gigabit Power over Ethernet (PoE ) ports and two Gigabit combo ports. It can provide up to 30 watts per port to fulfill high power consumption PD (Power Device). Besides, it is embedded with Advantech IXM function, this can benefit users for fast deployment and can dramatically save engineers time and costs. The EKI-7710G series also support NMS to help IT managers with networking maintenance and failure prevention. Finally, the EKI-7710G series is equipped with X-Ring which can achieve ultra high speed recovery time of less than 20 ms to ensure network stability.

• 8 x IEEE 802.3 af/at PoE Gigabit ports + 2 x Gigabit Copper/SFP combo ports
• SFP socket for Easy and Flexible Fiber Expansion
• Redundancy: Gigabit X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D)
• IXM function enables fast deployment
• Security: 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption), RADIUS
• Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB, Private MIB
• Dual 24~48 V DC power input and 1 relay output
