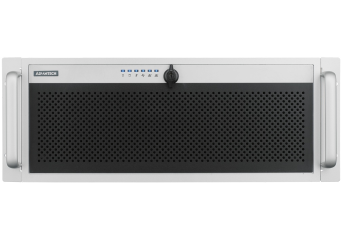

HPC-7442

The HPC-7442 series is a 4U rackmount chassis designed for digital surveillance or SCADA(Supervisory Control And Data Acquisition) server applications which have high storage demand. With the latest in industrial design, the HPC-7442 represents a breakthrough from the traditional, rigid concept of industrial PCs, and provides users with both a high-performance and a state-of-the-art operating platform. This series supports versatile EATX/ATX motherboards, with a highly efficient switching power supply and easy-to-maintain cooling fans. The series provides four or eight(after adding "storage upgrade kit") SAS/SATA HDD trays, which provide a flexible solution for data storage. Other data storage options include one slim-type drive bay for optical disk drives, and one 3.5" drive bay for internal hard drive disk. The unique alarm module monitors system status such as power, HDD, temperature, fan, and LAN, to minimize system downtime. Meanwhile, system fan's rotation speed increases or decreases depending on high or low temperature inside the chassis, to minimize system noise while light system loading. A wide range of standard computing peripherals can be integrated with these chassis to accommodate robust applications in rugged environments, 24 hours a day, 7 days a week.

• Supports EATX/ATX motherboard
• Shock-resistant disk drive bay provides four hot-swap 3.5" or 2.5" SAS/SATAdisk trays, one slim optical disk drive, and one 3.5" internal drive
• With optional storage upgrade kit installed, system equipped up to eighthot-swap HDD trays for higher storage capacity requirement
• Supports 80plus single and redundant power supply
• Front-accessible system fan without opening top cover for easy maintenance
• LED indicators and alarm notification for system fault detection
• Built-in Intelligent System Module enabling whole system fan control and remote manageability
