ICAM-520

Name: ICAM-520
Brand: Advantech
SKU: ICAM-520
Availability: OutOfStock

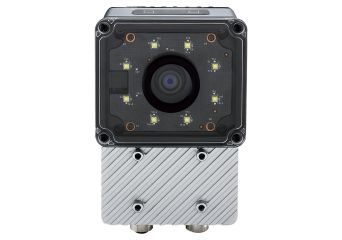

Industrial AI camera equipped with NVIDIA Jetson

Производител: Advantech

Product out of stock

Free shipping from €300

Promocja cenowa na model HDR-15-5

ICAM-520

Model	ICAM-520-10/12W
Sensor	SONY MX296, 1.6MP@60fps
Size, Shutter	1/2.9", global Shutter, Color
CPU/GPU	NVIDIA Xavier NX 6-core NVIDA Camel ARM® v8.2 64-bit CPU 6MB L2 + 4MB l3 (Max. operating frequency: 1.9GHz GPU: 384-core NVIDIA Volta GPU with 48 Tensor
Memory/ Storage	8 GB 128-bit LPDDR4 / 16G eMMC
Lens	12 mm variable focal length: FOV 40 x 29.3 mm @ 100 mm working distance FOV 364.5 x 263.7 @ 900 mm working distance 16mm variable focal length: FOV 33.9 x 25.3 mm @ 100 mm working distance FOV 305.4 x 228.2 @ 900 mm working distance
LED illumination	8 x PWM white LEDs, programmable
Synchronization	Hardware trigger / software trigger / free-run
HW ISP	Color debayering, sharpness, white balance, CCM correction, dark noise correction and brightness
Peripheral	1 x USB 3.0 Type C, 1 x RS485
Digital I/O	1x trigger in, 2 x Inputs, 2 x Outputs
Display	1 x HDMI 2.0
LAN	1 x 10/100/1000 Base-T
Power Requirements	19~24VDC Max: 18W, typical 15W
Dimensions	82mm (W) x 121mm (H) x 63 mm(D)
Environment	0-45° C, 5Grms
Certification	CE/FCC , IP54
OS	Ubuntu 18.04, Jetpack 4.6.2
Software	NVIDIA Deepstream SDK
SDK/Utiltiy	CAMNavi SDK, Web based camera utility, IP configure tool, NVIDIA DeepStream SDK & example
