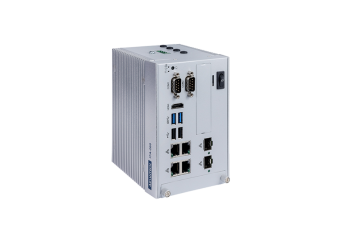

ITA-260

Intel® Core™ i 11th Generation Processor Fanless System for Traffic Management Applications

Supports up to 64G dual-channel SO-DIMM
Supports 6 GbE (4 x RJ-45 & 2 x SFP or 6 x RJ-45)
Supports 4 x USB (2 x USB3.0 & 2 x USB2.0), 2 x COM port
Built-in 1 x 2.5" SATA SSD bay
LAN surge ± 2KV
Supports Time-Sensitive Technology (TSN)
Supports wide operating temperature -40 ~ 60 °C, and 9-48V wide-range DC input
Compliant with EN 50121-4 standard, and supports IP rating IP40

Изчерпан

Безплатна доставка от €100

Promocja cenowa na model HDR-15-5

Продукт, предназначен само за професионална употреба

Описание
Техническа спецификация
Download
Препоръчани продукти

ITA-260

Описание

ITA-260 is a fanless edge AI computing platform for AIOPS (Artificial Intelligence for IT Operations) application, especially for wayside monitoring on railway networks, such as electricity power monitoring, railway track status monitoring, undercarriage track inspection, and wayside surveillance.

Техническа спецификация

	ITA-260
CPU	Intel Core i3/i5/i7 11th gen.
Memory	Up to 64GB RAM
VGA (DSub)	-
HDMI	1
DisplayPort	-
Audio	-
Gigabit Ethernet	4x 2.5 GbE LAN
Slot 2,5" HDD	1
Slot mSATA	1
Slot M.2	1x M.2 B key 2280 1x M.2 M key 2280
Slot miniPCIe	1
SIM card	1 x nano SIM card slot
PCIe	-
DIO	-
USB 3.0	2
USB 2.0	2
RS-232	-
RS-232/422/485	2
TPM	-
IP Rating	-
Working temperature	-40 ~ 60 °C
