Rugged X86-Based Vehicle-Mounted Terminal 10.4“ / 12.1“ LCD / IP66 / Windows or Android
Изчерпан

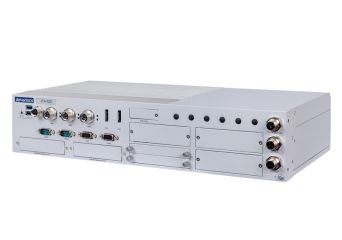

ITA-520
11th Gen Intel® Core™ H-Series platform EN50155 Fanless Computer; Compliant for Rolling Stock Applications
- 11th Gen Intel® Core™ H-Series platform with RM590E
- SuperCap-based power backup module for power failure
- Featured Time-Sensitive Network technology
- Virtualization ability for multi tasks acceptable
- Support advanced 5G and Wi-Fi 6 wireless connectivity
- LAN bypass for redundant connectivity to communicate with other devices
- Compliant with EN 50155 OT4
- Wide range 24 - 110Vdc power input, compliant with EN 50155
- Support variety of communication modules by iDoor technology
Цена от €2,466.00 нетна цена
Висока цена? Влезте в профила си и купете на по-ниска
Изчерпан
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употребаМодели
-
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиITA-520-W5A1P/N for ITA-520-W5A1, i5-11550HE,8GBИзчерпан Гаранционен срок: €2,466.00€3,033.18Влезте, за да проверите цената си ITA-520-W5A1P/N for ITA-520-W5A1, i5-11550HE,8GBНаличност: ИзчерпанНетна цена:€2,466.00 -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиITA-520-W7A1P/N for ITA-520-W7A1, i7-11850HE,16GBИзчерпан Гаранционен срок: €3,126.00€3,844.98Влезте, за да проверите цената си ITA-520-W7A1P/N for ITA-520-W7A1, i7-11850HE,16GBНаличност: ИзчерпанНетна цена:€3,126.00
Описание
The ITA-520 is a state-of-the-art fanless industrial computer designed specifically for rolling stock applications. With advanced technologies such as 5G, Wi-Fi 6 and Time-Sensitive Networking, it is ideally suited for demanding transportation applications where reliability and business continuity are key. It offers flexibility in configuration with iDoor modules, while its wide supply voltage range and EN 50155 compliance ensure seamless operation in harsh railroad environments.
Техническа спецификация
| ITA-520-W5A1 | ITA-520-W7A1 | |
| CPU | Intel Core i5-11500HE | Intel Core i7-11850HE |
| Memory | Built-in 8GB RAM Available expansion up to 32GB |
Built-in 16GB RAM Available expansion up to 32GB |
| VGA (DSub) | - | |
| HDMI | - | |
| DisplayPort | 2 | |
| Audio | 1x Line-out, 1x Mic-in | |
| Gigabit Ethernet | 3x 2.5 GbE LAN (M12 X-Coded(F)) | |
| Slot 2,5" HDD | 2x 2.5" 7mm, support RAID 0/1/5/10 (easy swap-tray) | |
| Slot mSATA | 1 | |
| Slot M.2 | 2x M.2 3042/3052 B+M Key 1x M.2 2230 A+E Key |
|
| Slot miniPCIe | 2x full-size | |
| SIM card | 4 x micro SIM slot, each M.2 slot supports dual micro SIM cards | |
| PCIe | 1 x PCIex16 thru. MCIO connector | |
| DIO | 4-bit DI/ 4-bit DO with 2KV Isolation | |
| USB 3.2 | 4 | |
| USB 2.0 | 1x M12 A-Coded (F) | |
| RS-232 | - | |
| RS-232/422/485 | 2x with 2KV Isolation | |
| TPM | TPM 2.0 | |
| IP Rating | IP40 | |
| Working temperature | -40 ~ 70°C | |
