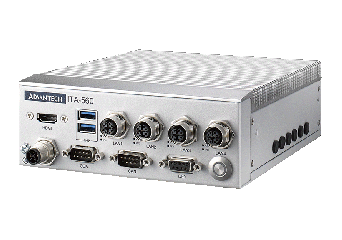

ITA-560
Compact Railway Computer with NVIDIA® Jetson Orin™ Nano / NX for AI Inference, EN 50155
Производител: Advantech
Производител: Advantech
- Computer for railway applications
- Fanless design for AI inference
- Built-in NVIDIA® Jetson Orin™ NX 16GB or Orin™ Nano 8GB
- Compliant with railway standards EN 50155 OT1 and EN 50121-3-2 EMC
- M12 connectors resistant to vibration and shock
- Available ports: 4 x M12 GbLAN, HDMI, 2 x USB 3.0, 1 x CAN (DB9), 1 x RS-232/422/485, DIO (DB9)
- 1 x Mini PCIe, 1 x M.2 (E-key), 1 x M.2 (M-key), and 1 x M.2 (B-key) for easy expansion
- Pre-installed Linux Ubuntu 20.04 operating system
Цена от 2 854,00 € без данък
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddITA-560NX-LOA1ITA-560 NV Jetson Orin NX_16G AI computing 24VOut of stock Warranty: 2 854,00 €3 510,42 €Login to check your price ITA-560NX-LOA1ITA-560 NV Jetson Orin NX_16G AI computing 24VAvailability: Out of stockNet price:2 854,00 €
Description
The ITA-560 computer is a fanless industrial computer designed for AI analytics applications, particularly in intelligent transportation systems. It is equipped with an NVIDIA® Jetson Orin™ NX or Orin™ Nano module, offering advanced data processing capabilities.
Example applications:
- Behavioral analytics: detecting aggressive behavior, fall detection, suspicious movement,
- Vandalism detection,
- Facial recognition,
- Object recognition (abandoned luggage, firearms, etc.),
- People counting, studying train usage patterns,
- Smoke and fire detection,
- Anomaly detection.
Technical Specification
| Function | Description |
|---|---|
| System | |
| Processor | NVIDIA® Jetson Orin™ NX: 8-core Arm® Cortex®-A78AE v8.2 64-bit NVIDIA® Jetson Orin™ Nano: 6-core Arm® Cortex®-A78AE v8.2 64-bit |
| GPU | NVIDIA® Ampere GPU 1024 CUDA cores and 32 Tensor cores Orin NX: Up to 100 (Sparse) and 50 (Dense) INT8 TOPs Orin Nano: Up to 40 (Sparse) and 20 (Dense) INT8 TOPs |
| Memory | Orin NX: 16 GB 128-bit LPDDR5 Orin Nano: 8 GB 128-bit LPDDR5 |
| External I/O | |
| Display | 1 x HDMI |
| CAN | 1 x CAN, DB9 |
| USB | 2 x USB 3.0 type A |
| Serial Port | 1 x RS-232/RS-422/RS-485, DB9 |
| DI/O | 1 x 8bit (4in/4out), DB9 |
| Internal I/O (Pin Header) | |
| OTG USB | 1 x Micro USB |
| Serial Port | 1 x RS-232/RS-422/RS-485, DB9 (optional) |
| Ethernet | |
| Controller | Intel® I210-IT |
| Interface | 10/100/1000 Mbps |
| Connector | 4 x M12 (X-coded) |
| Expansion | |
| Mini PCIe | 1 x Mini PCIe slot |
| M.2 | 1 x M.2 (B-key) 3052 (5G/LTE) 1 x M.2 (E-key) 2230 (Wi-Fi/Bluetooth) 1 x M.2 (M-key) 2280 (storage) |
| SIM | 1 x Nano SIM card slot |
| Antenna | 6 |
| Power | |
| Input Range | 24/110VDC |
| Connector | 1 x M12 (S-coded) |
| Environmental | |
| Operating Temperature | -25 ~ 55 °C |
| Storage Temperature | -40 ~ 85 °C |
| Humidity | 5% ~ 95% @ 40 °C (non-condensing) |
| Mechanical | |
| Dimensions (W x H x D) | 160 x 60 x 190 mm |
| Mounting | |
| Mount Options | Wall mount |
| Certification | |
| EMC | CE, FCC, BSMI, CCC |
| Safety | CE, FCC, BSMI, CCC |
| EN50155 Compliance | -25 ~ 55 °C (EN 50155 OT1), IEC 61373, Class S2, Class C1, EN 50121-3-2 |
