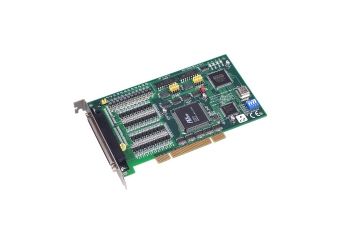

PCI-1240U

4-axis Stepping and Servo Motor Control Universal PCI Card

  • Independent 4-axis motion control
  • Hand wheel and jog function
  • 2/3-axis linear interpolation function
  • 2-axis circular interpolation function
  • Continuous interpolation function
  • Programmable T/S-curve acceleration/deceleration rate
  • Up to 4 MPPS output for each axis
  • Two pulse output types: CW/CCW or Pulse/Direction
  • Up to 1 MHz encoder input for each axis
  • Two encoder pulse input types: A/B phase or Up/Down
  • Constant speed control
  • Position management and software limit switch function
  • BoardID™ switch
Цена от 1067,00 € нетна цена

Висока цена? Влезте в профила си и купете на по-ниска

Изчерпан

Безплатна доставка от €100

Вижте 1 модел

Promocja cenowa na model HDR-15-5

Продукт, предназначен само за професионална употреба
PCI-1240U

PCI-1240U

Модели

Аксесоари

Описание

Advantech introduces the PCI-1240U 4-axis stepping/pulse-type servo motor control card designed for general-purpose extreme motion applications. The PCI-1240U is a high-speed 4-axis motion control card for the PCI bus that simplifies stepping and pulse-type servo motor control, giving you added performance from your motors. The card’s intelligent NOVA ® MCX314-motion ASIC builds in a variety of motion control functions, such as 2/3-axis linear interpolation, 2- axis circular interpolation, T/S-curve acceleration/deceleration rate and more. In addition, the PCI-1240U performs these motion control functions without processor loading during driving. For advanced applications, we supply Windows DLL drivers and user-friendly examples to decrease your programming load. Moreover, through a free bundled PCI-1240U motion utility, you can complete configuration and diagnosis easily.

  • Independent 4-axis motion control
  • Hand wheel and jog function
  • 2/3-axis linear interpolation function
  • 2-axis circular interpolation function
  • Continuous interpolation function
  • Programmable T/S-curve acceleration/deceleration rate
  • Up to 4 MPPS output for each axis
  • Two pulse output types: CW/CCW or Pulse/Direction
  • Up to 1 MHz encoder input for each axis
  • Two encoder pulse input types: A/B phase or Up/Down
  • Constant speed control
  • Position management and software limit switch function
  • BoardID™ switch
