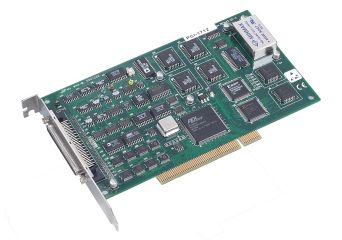

PCI-1712

1 MS/s, 12-bit, 16-ch Multifunction PCI Card

Производител: Advantech
Производител: Advantech
  • 16 single-ended or 8 differential or a combination of analog inputs
  • 12-bit A/D converter, with up to 1 MHz sampling rate
  • Two 12-bit analog output channels with continuous waveform output function
  • 16-ch digital input and 16-ch digital output
  • Three 16-bit programmable multifunction counter/timers on 10 MHz
  • Programmable gain
  • Automatic channel/gain scanning
  • Onboard FIFO memory (AI: 1,024 samples AO: 32,768 samples)
  • Auto-calibration (AI/AO)
  • PCI-Bus mastering data transfer
  • Pre-, post-, about- and delay-trigger data acquisition modes for analog input channels
  • Flexible triggering and clocking capabilities
Цена от 1 230,00 € без данък

High price? Log in and buy cheaper

Product out of stock

Free shipping from €300

Вижте 1 модел

Promocja cenowa na model HDR-15-5

Models

  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    PCI-1712-BE
    1M, 12bit High-speed Multifunction Card
    Out of stock Warranty:
    1 230,00 €
    1 512,90 €
    Login to check your price
    PCI-1712-BE
    1M, 12bit High-speed Multifunction Card
    Availability: Out of stock
    Net price:
    1 230,00 €

Accessories

Description

PCI-1712 and PCI-1712L are powerful high-speed multifunction cards for the PCI bus. They feature a 1 MHz 12-bit A/D converter, an onboard FIFO buffer (storing up to 1024 samples for A/D, and up to 32 K samples for D/A conversion). The PCI-1712 cards provide a total of up to 16 single-ended or 8 differential A/D input channels or a mixed combination, two 12-bit D/A output channels, 16 digital input/output channels, and three 10 MHz 16-bit multifunction counter channels. PCI-1712L is a low-cost version without analog output.

  • 16 single-ended or 8 differential or a combination of analog inputs
  • 12-bit A/D converter, with up to 1 MHz sampling rate
  • Two 12-bit analog output channels with continuous waveform output function
  • 16-ch digital input and 16-ch digital output
  • Three 16-bit programmable multifunction counter/timers on 10 MHz
  • Programmable gain
  • Automatic channel/gain scanning
  • Onboard FIFO memory (AI: 1,024 samples AO: 32,768 samples)
  • Auto-calibration (AI/AO)
  • PCI-Bus mastering data transfer
  • Pre-, post-, about- and delay-trigger data acquisition modes for analog input channels
  • Flexible triggering and clocking capabilities
