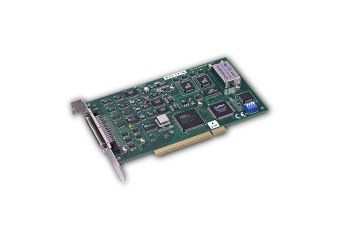

PCI-1716

PCI-1716 and PCI-1716L are powerful high-resolution multifunction cards for the PCI bus. They feature a 250 kS/s 16-bit A/D converter, and an onboard 1K sample FIFO buffer for A/D. The cards can also have up to sixteen single-ended or eight differential A/D input channels or a combination of these; two 16-bit D/A output channels, 16 digital input/output channels, and one 10 MHz 16-bit counter channel. PCI-1716 and PCI-1716L provide specific functions for different user requirements.

• 16 single-ended or 8 differential or a combination of analog inputs
• 16-bit A/D converter, with up to 250 kHz sampling rate
• Onboard FIFO memory (1,024 samples)
• 2 analog output channels
• 16-ch digital input and 16-ch digital output
• Auto-calibration
• PCI-Bus mastering data transfer
• Onboard programmable counter
• BoardID™ switch
