PCI-1784U

4-axis Quadrature Encode/Counter Universal PCI Card with 8-ch Isolated Digital I/O

  • Four 32-bit up/down counters
  • Single ended or differential inputs
  • Pulse/direction and up/down counter
  • x1, x2, x4 counts for each encoder cycle
  • Multiple interrupt sources for precision application
  • 4-stage digital filter with selectable sampling rate
  • On-board 8-bit timer with wide range time-base selector
  • Optically isolated up to 2,500 VDC
  • 4 isolated digital input
  • 4 isolated digital output
  • BoardID™ switch
Цена от 449,00 € нетна цена

Висока цена? Влезте в профила си и купете на по-ниска

Изчерпан

Безплатна доставка от €100

Вижте 1 модел

Promocja cenowa na model HDR-15-5

Продукт, предназначен само за професионална употреба
PCI-1784U

PCI-1784U

Модели

Аксесоари

Описание

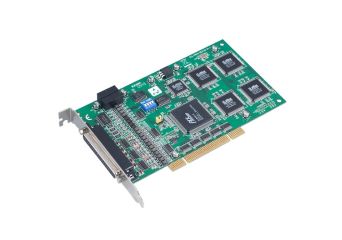

PCI-1784U is a 4-axis quadrature encoder and counter add-on card for PCI bus. The card includes four 32-bit quadruple AB phase encoder counters, 8-bit timer with multi range

  • Four 32-bit up/down counters
  • Single ended or differential inputs
  • Pulse/direction and up/down counter
  • x1, x2, x4 counts for each encoder cycle
  • Multiple interrupt sources for precision application
  • 4-stage digital filter with selectable sampling rate
  • On-board 8-bit timer with wide range time-base selector
  • Optically isolated up to 2,500 VDC
  • 4 isolated digital input
  • 4 isolated digital output
  • BoardID™ switch
