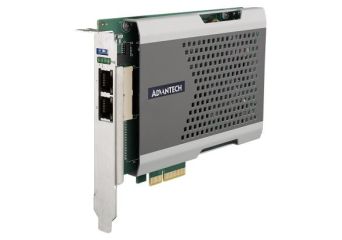

PCIE-1672E

The PCIE-1672/PCIE-1674 PoE (Power over Ethernet) PCIE series is PCI express Network Interface Card which supports 2 or 4 independent 10/100/1000BaseT(X) 802.3af (PoE) compliant Ethernet ports. With 12 VDC AT/ATX power input, the PCIE-1672/PCIE-1674 can boost then provides up to 15.4 watts at 48 VDC power to maximum 2 or 4 x PoE ports on each module. It allows power to be supplied to connected devices, such as PoE-based GigE cameras in machine vision inspection systems, without the need to use separate PoE injectors for those applications. The PCIE-1672/PCIE-1674 is ideally designed for scientific research instrumentations, Medical Research Instrumentations, Machine Vision System, which can also benefit from a scalable Gigabit backbone construction with Power-over-Ethernet support.

• Intel® server-grade GbE Mac Controller
• PCI Express® x4 compliant
• PoE power from PCIe slot(Total Max. 18W)
• Powered Device (PD) auto detection and classification
• Supports IEEE 802.3u Auto-Negotiation
• Supports Jumbo frame (9,500 byte) and link aggregation
• Supports IEEE-1588 and IEEE-802.1 AS
• Per port power on/off control (PCIE-1672V)
