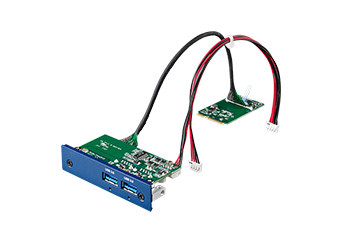

PCM-24U2U3

The PCM-24 series are communication modules from Advantech iDoor Technology. They are all compatible with the PCI Express® Mini Card Specification Revision 1.2, including isolated / non-isolated RS-232/422/485 communication cards for automation control, Wi-Fi/3G/GPS/GSM/LTE wireless communication models for data exchange for management and machine level automation applications, ZigBee module as an IoT terminal or controller and PoE function for smart camera in detection-inspection-production applications. This is a flexible design that enables customers to customize their features with iDoor Technology.

• Meets Advantech iDoor Technology Standard
• PCI Express® Mini Card Specification Revision TM 2.0 compliant
• Expands two external USB3.0 Super-Speed ports
• Complies with xHCI specification
• Supports hot-swapping function
• Supports lockable function for USB cable
• Supplies maximum +5 V/900 mA power output to USB device
• Supports 32/64-bit Microsoft® Windows® XP/Vista/7/8/10
• *Additional power cable is required
