PCM-3618

8-port RS-422/485 High-Speed PC/104 Module

Eight independent RS-422/485 serial ports
Automatic RS-485 data flow control
Transmission speeds up to 921.6 Kbps
Shared IRQ settings for each port
Windows® 95/98/NT/ME/2000/XP, Windows® CE driver
Built-in termination resistors
LED indicators: TX, RX
Standard PC ports: COM1, COM2, COM3, COM4 compatible

Изчерпан

Безплатна доставка от €100

Promocja cenowa na model HDR-15-5

Продукт, предназначен само за професионална употреба

Описание
Препоръчани продукти

PCM-3618

Описание

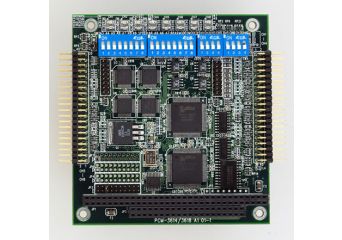

The PCM-3618 is a PC/104-compatible module with eight individually configurable RS-422/485 ports. It works with PC/104 CPU modules to extend additional RS-2422/485 ports. The PCM-3618 also features lots of functions such as high transmission speed of 921.6 kbps, shared IRQ and more. It also provides high-performance 16C550 UART communication chip with 16-byte FIFO to reduce CPU load. This makes the PCM-3618 especially suitable for multitasking environments.
