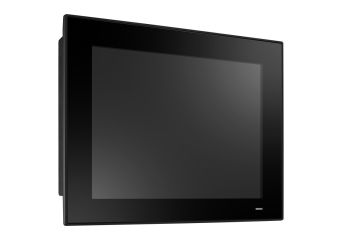

PPC-310 EHL

Fanless Panel PC with Intel® Celeron® J6412 Processor

Производител: Advantech

Industrial-grade 10.4" XGA TFT LCD with 30K backlight lifetime
Durable true-flat touchscreen with 5-wire resistive/projected capacitive touch control
Embedded Intel® Celeron® J6412 quad-core, 2.0 GHz, processor
Up to 32 GB DDR4 SDRAM
1 x RS-232, 1 x RS-232/422/485, 2 x USB 2.0, and 2 x USB 3.1
Compact, fanless design with solid aluminum alloy enclosure and IP66-rated front panel
Supports E-key for wireless module
Supports expansion via M.2 slot
Supports Windows Embedded Linux and Android OS
No RAM, power supply, disk and operating system

In stock

Place the order by 12:00, the package will be shipped on the same day

Free shipping from €300

Вижте 2 модела

Promocja cenowa na model HDR-15-5

Models
Description
Technical Specification
Download
Recommended Products

PPC-310 EHL

Models

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
PPC-310-PJ60A 10.4" PPC w/Intel J6412, Pcap	In stock	Warranty:		844,00 € 1 038,12 € Login to check your price	Login to check your price	pcs.

PPC-310-PJ60A

10.4" PPC w/Intel J6412, Pcap

Availability:

In stock

Net price:

844,00 €

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
PPC-310-RJ60A 10.4" PPC w/Intel J6412, Res	In stock	Warranty:		844,00 € 1 038,12 € Login to check your price	Login to check your price	pcs.

PPC-310-RJ60A

10.4" PPC w/Intel J6412, Res

Availability:

In stock

Net price:

844,00 €

Description

PPC-310 EHL is an industrial panel PC with 10.4" XGA LCD, powered by Intel Celeron quad core J6412 processor. With aesthetic aluminum alloy enclosure, PPC-310 EHL ensuresfanless reliability and easy maintenance in diverse industrial applications. Moreover, it provides more faster and flexible connection via 2 x 2.5G Ethernet port, 2 x USB 3.1 and1 x Type C (USB only). The PPC-310 EHL is ideal for MES, processing and general industrial equipment integration.

Technical Specification

		PPC-310-RJ60A	PPC-310-PJ60A
	CPU	Intel® Celeron® J6412 quad core
	Frequency	2.0 GHz
	L2 Cache	1.5 MB
	RAM	1 X SDRAM DDR4 3200 MHz (max. 32G)
	Storage	1 X 2.5" SATA bay (optional; requires a bracket module for installation) 1 X M.2 slot: M key for storage (SATA only, 2242 & 2280)
System	Sieć (LAN)	2 X 10/100/1000/2500 Mbps Ethernet (Intel 1225-LM)
	I/O	2 X Serial ports: 1 X RS-232, 1x RS-232/422/485 (Adjustable through BIOS) 2 X USB 2.0, 2 X USB 3.1 1 X TypeC (USB only) 1 X HDMI1.4 1 X TPM 2.0
	Expansion	1 X M.2 2230 E-key for wireless card
	Watchdog Timer	255 timer levels, set up by software
Characteristics	Dimensions	271.8 X 216.8 x 49.7 mm (2.07 X 8.53 X 1.96 in)
Physical	Weight	3.1 kg (6.83 lb)
OS Support	OS Support	Microsoft Windows 10(64-bit), Linux, Android
	Input Voltage	12 - 30 VDC
Power Consumption	Power Consumption	29W (Burn-in test 8.1 in Windows 10, 64-bit)
	Display Type	10.4" TFT LCD (LED backlight)
	Resolution	1024x768
LCD	Viewing Angle	80 (left), 80 (right), 88 (up), 88 (down)
	Luminance (cd/m²)	350
	Contrast	1000
	Backlight Lifetime	30,000 hr (min.)
	Type	ELO 5-wire resistive touch	Projected Capacitive Multi-touch
	Light Transmission	80+5% at 550 nm wavelength	88+2%
Touchscreen	Controller	USB interface	USB interface
	Durability (Touches)	Greater than 35 million touches in one location withoutfailure	Cover glass > 7H
	Operating Temperature	-10 - 50°C (14 - 122°F)
	Storage Temperature	-20 - 60 °C (-4 - 140 °F)
	Relative Humidity	10 - 95% @ 40 °C (non-condensing)
Environment	Shock	Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27
	Vibration	Operating Random Vibration Test 5 ~ 500Hz, 2Grms @with SSD, follow IEC 60068-2-64
	EMC	CE, FCC Class B, BSMI, UKCA, VCCI
	Safety	CB, CCC, BSMI, UL, UKCA
	Protection	IP66 dla panelu przedniego
