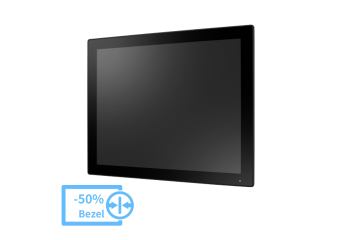

PPC-317S RPL

17" fanless panel PC with 13th gen Intel Core processors (i7/i5/i3)

Производител: Advantech

Built-in Intel Core i3/i5/i7 13th gen.
True-flat touchscreen with Industrial-grade LCD panel
High-performance, fanless 13th gen Intel Core processors
Slim Compact, fanless design with aluminum alloy enclosure
IP66-rated front panel
Supports dual displays (1x external DP), iDoor and PCI or PCIe
1x M.2 M Key 2242/2280 (SATA or NVME PCIe x4) for storage, support SATA RAID 0,1
2x 2500BASE-T Ethernet Supports Time-Sensitive Network(TSN) technology
Supports VESA 100
Support TPM2.0 hardware security
No RAM, storage, power supply and operating system included

Product out of stock

Безплатна доставка от €100

Promocja cenowa na model HDR-15-5

Продукт, предназначен само за професионална употреба

PPC-317S RPL

PPC-317S RPL
Processor	Intel Core i3/i5/i7 13th gen.
RAM	Up to 32 GB SODDR5
VGA (DSub)	-
HDMI	-
DP	1
Audio	Line out
Gigabit Ethernet	2x 2.5 GbE LAN
2,5" HDD	1
Slot mSATA	-
Slot M.2	1x M.2 M Key 2242/2280 (SATA or NVME PCIe x 4), support SATA RAID 0,1 1x M.2 B key 2242 or 3042/3052 (SATA, PCIe X1 ,USB 3.0 & SIM slot) 1x M.2 E Key 2230 (PCIe & USB 2.0)
USB 3.2	3
USB 2.0	1
RS-232/422/485	2
Slot miniPCIe	-
Expansions	1x iDoor (optional) 1x PCI or PCIe x1 (optional)
TPM	Supports TPM 2.0
Display	17" TFT LCD (LED backlight)
Resolution	1280 x 1024
Contrast	1000
Luminance	250
Touch type	5 wire resistive touch or Mlti-touch projected capacitive
Conrtoller	USB interface
Front Panel Protection	IP66 compliant
Working temp.	-10°C ~ +50°C
