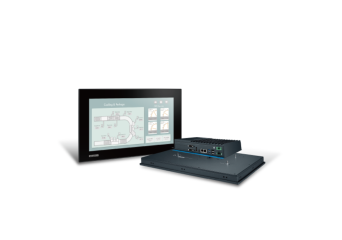

TPC-B520
Modular TPC - Computing Box Module with Intel Core processors (13th gen)
Производител: Advantech
Производител: Advantech
- Modular Computing Box powered by Intel® Core™ processors (13th gen) i5-1335UE deca-core/ i7-1365URE deca-core processor
- Single DDR5 Memory slot supports up to 32GB
- Support expansion via three M.2 slots (NVMe, Wifi, 5G)
- LAN, POE, isolated serial port and isolated digital I/O via iDoor technology
- Support Type C connector with USB 3.2, DP 1.4a, 15W power delivery
- Support fieldbus protocols/GPS/GPRS/Wi-Fi capabilities via iDoor technology
- Modular Front Panel modules ranging from 12.1" to 23.8" with P-CAP multi-touch in selection (12.1", 15", 15.6", 21.5" with high brightness panel option)
Цена от € 1 274,00 без данък
High price? Log in and buy cheaper
In stock
Поръчайте до 12:00 и ще бъде изпратен в рамките на деня
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употребаModels
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddTPC-B520-D50AModular TPC Box, Core i5-1335UEIn delivery Warranty: € 1 274,00€ 1 567,02Login to check your price TPC-B520-D50AModular TPC Box, Core i5-1335UEAvailability: In deliveryNet price:€ 1 274,00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddTPC-B520-D70AModular TPC Box, Core i7-1365UREIn stockWarranty: € 1 735,00€ 2 134,05Login to check your price TPC-B520-D70AModular TPC Box, Core i7-1365UREAvailability:In stockNet price:€ 1 735,00
Description
Technical Specification
| Processor | 13th Gen. Intel Core i5-1335UE 1.3 GHz Deca-core/i7-1365URE 1.7 GHz Deca-core processor |
| RAM | Up to 32 GB DDR5 |
| VGA (DSub) | - |
| HDMI | - |
| Displayport | 1 |
| 2,5" HDD/SSD | 1x SATA for 2.5" SSD/HDD (Optional) |
| M.2 | 1x M.2 M key 2280 for NVMe (PCIE x4/SATA, RAID support) 1x M.2 B Key 3042, 3052, 3080 for iDoor (PCIe x2/USB2.0, RAID support w/ SSD) 1x M.2 E key 2230 for WIFI (PCIe/USB2.0) 1x M.2 B Key 3052 for 5G LTE (PCIe/USB3.2/USB2.0) |
| PCIe x16 | - |
| PCIe x4 | - |
| PCI | - |
| LAN | 2x 2.5 GbE |
| Slot mSATA | - |
| Slot miniPCIe | - |
| Audio | 2x 4Ω Speaker for Audio out (Optional) |
| USB 3.2 | 2 |
| USB 2.0 | 2 |
| RS-232/422/485 | 2 |
| TPM | TPM 2.0 (built-in) |
| Operating temp. | -20°C ~ +60°C |
