Продукт, предназначен само за професионална употреба| Модел | Наличност | Гаранция | Wishlist | Вашата цена | Вашата цена | Items Quantity Добави |
|---|---|---|---|---|---|---|

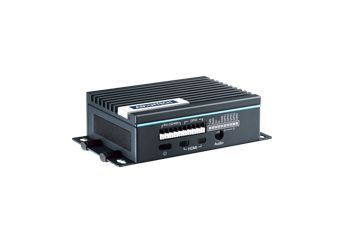

| UNO-220-P4N1AE RPi Gateway Kit with 1 RS232/485, 4 GPIO, 8G SD | Изчерпан | Гаранционен срок: | 115,00 € 141,45 € | Влезте, за да проверите цената си |
Featuring a system-image OS equipped micro SD card, an RPi 4 HAT I/O board, additional RS-232/485 GPIOs, and an RTC battery backup for precise time keeping; UNO-220 is designed for customers using Raspberry Pi 4 (RPi 4) single-board computers (SBCs) in IoT applications.
|
General |
Certification |
CE, FCC |
||
|
Dimensions |
100 x 70 x 32 mm |
|||
|
Form Factor |
Micro |
|||
|
Enclosure |
Aluminum housing |
|||
|
Weight |
0.5 kg |
|||
|
Power Consumption |
15 W |
|||
|
OS Support |
AdvRaspbian |
|||
|
System Hardware |
Hardware Security |
TPM 2.0 (available upon request) |
||
|
Storage |
1 x Micro SD slot (dummy) (internal 8 GB SD card interchangeable with Raspberry Pi 4) |
|||
|
I/O Interfaces |
Serial Ports |
1 x RS232/485 (5-pin terminal block), automatic direction control, 300 ~ 115.2k bps |
||
|
GPIO |
GPI 0-3: VIH: 2 ~ 5V VIL: 0 ~ 0.8V GPO 0-3: 0 ~ 5V |
|||
|
Environment |
Operating Temperature |
0 - 50°C |
||
|
Storage Temperature |
20 ~ 60 °C |
|||
|
Relative Humidity |
10 ~ 95% RH @ 40 °C, non-condensing |
|||
|
Ingress Protection |
IP40 |
|||
