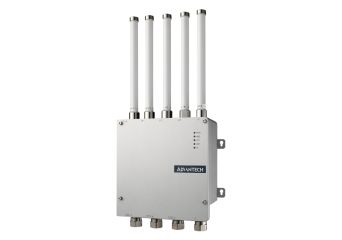

UNO-430 EXP
Waterproof Data Gateway with IP66 Rating and Explosion Protection
Производител: Advantech
Производител: Advantech
- Intel® Atom™ E3950 quad-core processor with 8GB of DDR3L memory
- 2 x Gigabit Ethernet, 2 x RS-422/485 with isolation protection, 1 x RS-232 console port
- IP66 rating for protection from water and dust ingress
- Wide operating temperature range (-40 ~ 70 °C/-40 ~ 158 °F)
- Built-in TPM 2.0 for hardware-based security
- 1 x M.2 (E-key) and 1 x M.2 (B-key) expansion sockets for integrating CE-RED-compliant Wi-Fi, LTE, and GPS wireless communication modules
- Enclosure with front door and cable gland design ensures easy installation and maintenance
- C1D2, ATEX, and IECEx certification for explosion tolerance
Изчерпан
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
UNO-430 EXP
Описание
UNO-430 EXP features all-around IP66-rated ingress protection and cable gland I/O connectors to provide a truly water and dust proof solution. With C1D2, ATEX, and IECEx certification for explosion tolerance, UNO-430 EXP is ideal for applications that can withstand the most demanding applications.
Техническа спецификация
| Environment | |
| Ingress Protection | All -around IP66 |
| Operating Temperature | -40-70°C (-40-158°F ) |
| Relative Humidity | 10-95%RH (non -condensing ) |
| Shock Protection | 50G ,half sine |
| Storage Temperature | -40-85°C (-40-185°F ) |
| Vibration Protection | 2Grms ,random |
| Hardware | |
| CPU | Intel® ATOM E3950 1.6GHzQuad -Core |
| Graphics Engine | Intel® HD Graphics |
| Hardware Security | TPM 2.0 |
| Memory | 1x SO -DIMM with 8GB DDR3L 1600MHz |
| OS Support | Microsoft® Windows 102019LTSC ,Linux |
| Power Input | 10-36VDC |
| Storage | 1x M.2 B key |
| I /O Interface | |
| Displays | 1x DP |
| Expansion | 1x M.2 B key ,1x M.2 E key |
| LAN Ports | 2x 10/100/1000Mbps |
| Power Connector | 1x 3-Pin Terminal Block |
| Serial Ports | 2x RS -232/422/485,1x RS -232(Console ) |
| USB Ports | 2x Internal USB |
| Cable Gland | 4x 1/2"NPT conduit explosive atmosphere cable gland |
| (cable size OD 6.55-14mm /0.26-0.55in ) | |
| Mechanical | |
| Dimension (W x H x D ) | 200x 68x 200mm |
| Enclosure | Aluminum housing |
| Weight (Net ) | 3.7kg |
Download
