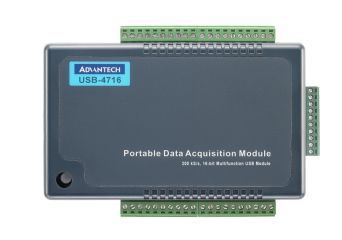

The USB-4700 series consists of true plug & play data acquisition devices. No more opening up your computer chassis to install boards-just plug in the module, then get the data. It’s easy and efficient. USB-4716 offers 16 single-ended/ 8 differential inputs with 16-bit resolution, up to 200 kS/s throughput, 16 digital I/O lines and 1 user counter, add two 16-bit analog outputs. The high performance makes USB-4716 your best choice for test & measurement applications in the production line or in the lab.
Reliable and rugged enough for industrial applications, yet inexpensive enough for home projects, the USB-4716 is the perfect way to add measurement and control capability to any USB capable computer. The USB-4700 series is fully plug & play and easy to use. It obtains all required power from the USB port, so no external power connection is ever required.

• Supports USB 2.0
• Bus-powered
• 16 analog input channels
• 16-bit resolution AI
• Sampling rate up to 200 kS/s
• 8-ch DI/8-ch DO, 2-ch AO and one 32-bit counter
• Detachable screw terminal on modules
• Suitable for DIN-rail mounting
• One lockable USB cable for secure connection included
• Portable
