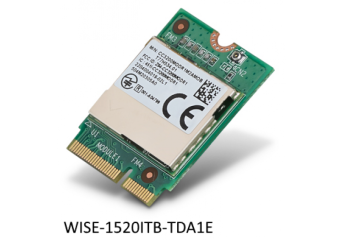

WISE-1520

WISE-1520 is the first wireless sensor node for M2.COM family. It’s integrated with ARM Cortex-M4 Processor and low power Wi-Fi connectivity fully compatible with existing Wi-Fi infrastructure. It’s convenient to build the industrial IoT applications environment with M2.COM compact design. WISE-1520 also offers certification ready to save RF testing costs and software development kit including sample code, sensor driver API, utility and RTOS for the embedded microprocessor operating system. With built-in WISE-Agent, WISE-1520 can communicate directly with WISE-PaaS/RMM Cloud platform for remote monitoring and management by widely-used IoT communication protocol – MQTT. Data can be quickly and easily acquired and transformed into a different format to communicate with WISE-PaaS or other cloud services. Developer can build their application backbone faster and focus on their applications, value-added services.

• ARM Cortex-M4 processor
• RAM 256 KB memory / 1MB Serial Flash
• Built-in Low-power Wi-Fi connectivity
• Support 1 UART, 1 I2C , 1 SPI, 2 GPIO, 2 PWM, 2 ADC
• 22 x 30 mm M.2 key E
