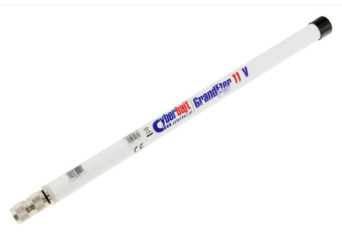

GrandEter 11 Lite
The omnidirectional antenna with 11 dBi gain, 5 GHz band, N-male connector
Производител: Cyberbajt
Производител: Cyberbajt
- Omnidirectional antenna
- Frequency range: 5,1 - 5,8 GHz
- Gain: 11,3 dBi
- Vertical polarization
- Connector: N/Male
- Mounting - directly to AP, without grip
Цена от 33,00 € без данък
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
GrandEter 11 Lite
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddGrandEter 11 Lite (6143)omnidirectional 5GHz 11dbi, N maleOut of stock Warranty: 33,00 €40,59 €Login to check your price GrandEter 11 Lite (6143)omnidirectional 5GHz 11dbi, N maleAvailability: Out of stockNet price:33,00 €
Description
The 5GHz Omni Directional antenna systems are constructed of UV-stable fiberglass. The Lite version does not have a handle - is designed to mounting directly to the device. The antenna provides with 360 degrees at the beam width in the horizontal plane, it's cost effective base station antenna.
Technical Specification
| Antenna type | omnidirectional |
| Frequency range | 5,1 - 5,8 GHz |
| Gain | 11,3 dBi |
| Polarization | vertical |
| Back ratio | n/a dB |
| Vertical beam width | 8 ° for -3dB |
| Horizontal beam width | 360 ° for -3dB |
| VSWR | 1 : 1,7 |
| Impedance | 50 Ohm |
| Connector | N/Male |
| Wind load | 56 m/s |
| Mounting | directly to AP, without grip |
| Dimensions | 433 x dia 22 mm |
| Package dimension | 46/5/5 cm |
| Total weight | 207 g |
| Weight without mounting | 161 g |
| Warranty | 36 months |
