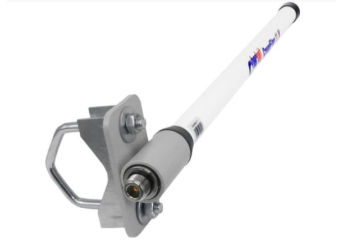

GrandEter 11 V
Professional omnidirectional antenna designed to build 5GHz base stations operating in vertical polarization, 11 dBi gain.
Производител: Cyberbajt
Производител: Cyberbajt
- Omnidirectional antenna
- Frequency range: 5,1 - 5,8 GHz
- Gain: 11 dBi
- Vertical polarization
- Connector: N/Female
- Mounting: to mast
Цена от €33,00 нетна цена
Висока цена? Влезте в профила си и купете на по-ниска
Изчерпан
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
GrandEter 11 V
Модели
-
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиGrandEter 11 V (2145)omnidirectional 5GHz 11dbi, N femaleИзчерпан Гаранционен срок: €33,00€40,59Влезте, за да проверите цената си GrandEter 11 V (2145)omnidirectional 5GHz 11dbi, N femaleНаличност: ИзчерпанНетна цена:€33,00
Описание
The 5GHz Omni Directional antenna systems are constructed of UV-stable fiberglass. The antenna comes with an integral N Female connector and is designed to be pole mount only. The material used for a construction make it lightweight and resistant for outdoor conditions.
The antenna provides with 360 degrees at the beam width in the horizontal plane, it's cost effective base station antenna. OD 56-11V comes with N Female connector in standard, it's equipped with the stainless mast mount bracket.
Техническа спецификация
| Typ anteny | dookólna |
| Zakres częstotliwości | 5,1 - 5,8 GHz |
| Zysk energetyczny | 11 dBi |
| Polaryzacja | pionowa |
| Promieniowanie wsteczne | n/a dB |
| Kąt promieniowania w płaszczyźnie pionowej | 8 ° dla -3dB |
| Kąt promieniowania w płaszczyźnie poziomej | 360 ° dla -3dB |
| VSWR | 1 : 1,7 |
| Impedancja | 50 Ohm |
| Złącze | N/Żeńskie |
| Odporność na wiatr | 56 m/s |
| Montaż | do masztu |
| Średnica masztu/uchwytu | 38 - 51 mm |
| Wymiary | 22 x 480 mm |
| Wymiar opakowania | 55/10/5 cm |
| Waga całkowita | 500 g |
| Waga z uchwytem | 400 g |
| Waga bez uchwytów | 300 g |
| Gwarancja | 36 m-cy |
