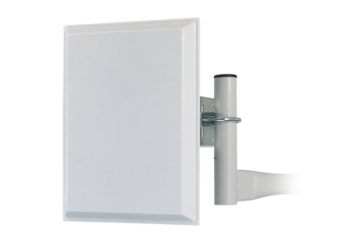

LineEter DUO 16dBi

PAN 24-16 HV is the dual polarity client antenna, designed for operation at the frequency of 2,4 GHz. The antenna has gain of 16 dBi. It's predicted to be used for the MIMO (802.11n standard) links on the medium lenght distances.

The separation level between connectors is 30 dB. Medium antenna gain allows to set links on the medium distances. The fucused antenna radiation guarantees the good performances also in case of the connections on the short distances.

The microstrip technology has been used to design PAN 24-16 HV. The antenna board is located between a steel made back shield and low-loss durable front shield made from durable ABS plastic. It ensures the protection against bad weather conditions and ensures the performances stability during operation time.

To protect the radio equipment connected to the antenna, we equipped PAN 24-16HV with a DC ground.

Robust stainless brackets ensures strong resist against heavy wind and provides the possibility to tilt the antenna in two planes.
