Производител: Cyberbajt
- Omnicirectional antenna
- Frequency range: 2,4 - 2,5 GHz
- Vertical polatization
- Gain: 10 dBi
- Connector: 1xN/Female
- Pole mounting
Цена от 36,00 € без данък
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
ProEter 10dBi
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddProEter 10dBi (1)omnidirectional 2.4GHz, 10dbi, N femaleOut of stock Warranty: 36,00 €44,28 €Login to check your price ProEter 10dBi (1)omnidirectional 2.4GHz, 10dbi, N femaleAvailability: Out of stockNet price:36,00 €
Description

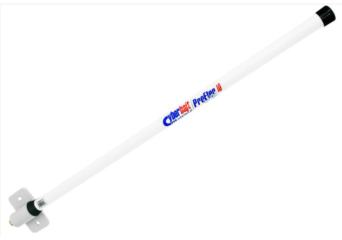

OD 24-10V is an omnidirectional antenna designed for the frequency of 2,4 GHz. OD 24-10V works in vertical polarization and has 10 dBi gain. It is meant as a basestation antenna. OD 24-10V can be used for connections on short distances when height of a location requires the wide vertical beamwidth. The device can be used inside and outside buildings. This new design is characterized by low weight and better stability, which we achieve thanks to using a new type of mounting. Antenna comes with N Female connector per standard, and is equipped with U-bolt for mast mounting.
Technical Specification
| Antenna type | omnidirectional |
| Frequency range | 2,4 - 2,5 GHz |
| Gain | 10 dBi |
| Polarization | vertical |
| Back ratio | n/a dB |
| Vertical beam width | 23 ° |
| Horizontal beam width | 360 ° |
| VSWR | 1 : 1,5 |
| Impedance | 50 Ohm |
| Connector | N/Female |
| Wind load | 56 m/s |
| Mounting | pole mounting |
| The diameter of the mast / pole | 26 - 53 mm |
| Dimensions | 675 x dia 22 mm |
| Package dimension | 75/10/5 cm |
| Total weight | 620 g |
| Weight with mounting | 512 g |
| Weight without mounting | 370 g |
| Warranty | 36 months |
