UniEter

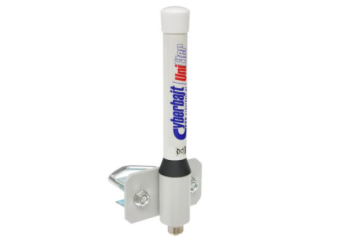

Two-band omnidirectional antenna for work in both 2.4GHz and 5GHz bands
- Omnidirectional
- Frequency range: 2,4–2,5 GHz; 5,15–5,90 GHz
- Vertical polarization
- Gain: 5 dBi
- Connector: N/Female
- Mounting: to the mast
Висока цена? Влезте в профила си и купете на по-ниска
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
UniEter
Модели
-
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиUniEter (7518)omnidirectional 2,4, 5GHz 5dbi, N femaleИзчерпан Гаранционен срок: €31.00€38.13Влезте, за да проверите цената си UniEter (7518)omnidirectional 2,4, 5GHz 5dbi, N femaleНаличност: ИзчерпанНетна цена:€31.00
Описание
Omnidirectional antenna designed for use in 2.4 and 5 GHz bands. Offers 5 dBi gain in both 2.4 GHz and 5 GHz bands.
It has very good electrical parameters and modern, lightweight and resistant construction. The use of the highest quality low-loss teflon laminate , based on the same material which the radiant heater is made, provides an ideal match for both 2.4 and 5 GHz frequency bands.
With a modest gain, the antenna allows you to build high-performance mid-range base stations, avoiding / minimizing distractions in locations with a large number of other wireless networks.
The array of radiators was additionally varnished and placed under the cover of a very durable and low-damping plastic. This protects the antenna against the effects of weather conditions and ensures durability and stability of parameters during operation.
The solid handling attached to the antenna provide stability and high wind resistance.
Техническа спецификация
| Typ anteny | dookólna |
| Zakres częstotliwości | 2,4–2,5 GHz; 5,15–5,90 GHz |
| Zysk energetyczny | 2,4 GHz: 5 dBi; 5 GHz: 5 dBi |
| Polaryzacja | pionowa |
| Promieniowanie wsteczne | n/a dB |
| Kąt promieniowania w płaszczyźnie pionowej | 2,4 GHz: 55 ° 5 GHz: 45 ° |
| Kąt promieniowania w płaszczyźnie poziomej | 360 ° |
| VSWR | 1 : 2 |
| Impedancja | 50 Ohm |
| Złącze | N/Żeńskie |
| Odporność na wiatr | 56 m/s |
| Montaż | do masztu |
| Średnica masztu/uchwytu | 38 - 51 mm |
| Wymiary | 22 x 220 mm |
| Waga całkowita | 400 g |
| Waga z uchwytem | 300 g |
| Waga bez uchwytów | 200 g |
| Gwarancja | 36 m-cy |
