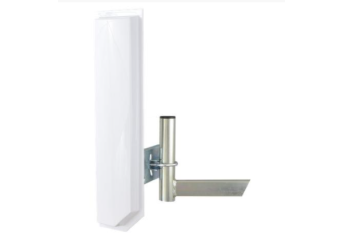

VH-Line Sektor Duo 14/120
Dual polarity sector antenna working at 2,4GHz frequency with the BOX integrated, 14 dBi, 120 degrees
- Double sector antenna
- Frequency range: 2,4 - 2,5 GHz
- Gain: 14 dBi
- Vertical + horizontal polarization
- 2x2 MIMO
- Connectors 2x N/Female
- Mounting to mast
High price? Log in and buy cheaper
Free shipping from €300
Promocja cenowa na model HDR-15-5
VH-Line Sektor Duo 14/120
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddVH-Line Sektor Duo 14/120 (3679)Sector 120, 14dbi, MIMO 2x2, 2.4GhzOut of stock Warranty: 90,00 €110,70 €Login to check your price VH-Line Sektor Duo 14/120 (3679)Sector 120, 14dbi, MIMO 2x2, 2.4GhzAvailability: Out of stockNet price:90,00 €
Description
Dual polarity sector antenna working at 2,4GHz frequency with the BOX integrated, enabling for installation of RouterBoard 411, 433, 711, Alix, Ubiquiti boards inside. Antenna has a gain of 14dBi and 120 degrees radiation beam-width at the horizontal polarization. It’s designed for operation with a radio equipment working at the 802.11n standard with the 2x2 MIMO technology. Works fine with client devices equipped with dual polarity antennas, allowing for improving the link quality and the SNR level and obtaining the transmission rate of 300Mbps, also in the localizations with low multi-path level. Due to high factor of separation between connectors (>35 dB) allows for dual base station 2,4 GHz building (at 802.11b/g standard).
Technical Specification
| Antenna type | double sector |
| Frequency range | 2,4 - 2,5 GHz |
| Gain | 14 dBi |
| Polarization | vertical + horizontal |
| Separation between connectors | >35 dB |
| Vertical beam width | 17 ° for -3dB |
| Horizontal beam width | 120 ° for -3dB |
| VSWR | 1 : 1,4 |
| Impedance | 50 Ohm |
| Connector | 2 x N/Female |
| Wind load | 56 m/s |
| Mounting | to mast |
| The diameter of the mast / pole | 38 - 51 mm |
| Set content | antenna, mounting brackets, manual |
| Dimensions | 456 x 140 x 40 mm |
| Package dimension | 60/13,5/11 cm |
| Total weight | 1267 g |
| Weight with mounting | 1080 g |
| Weight without mounting | 682 g |
| Warranty | 36 months |
