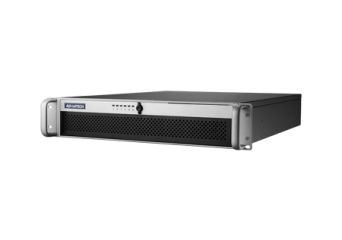

Elmatic EagleEYE 100
EagleEYE 100 is a high-performance server designed to handle up to 100 channels, with a maximum disk capacity of up to 72 TB. It is based on a 2U chassis with dimensions of 426.4 x 88 x 525 mm, intended for mounting in a 19" rack cabinet.
The server is equipped with an AIMB-788G2 motherboard and an i7-13700 processor, supported by 32 GB of RAM and integrated graphics. It features three video ports: 1x VGA, 1x HDMI, and 1x DisplayPort, as well as two RJ45 network ports. The operating system is Windows 10 IoT 2021 LTSC.
EagleEYE 100 includes a 256 GB M.2 NVMe system disk and four 3.5" hot-swap storage disks. It supports RAID 0/1 software configurations, with an option for hardware RAID. The server is powered by a 500W power supply, with optional power redundancy.
| General Information | |
|---|---|
| Number of channels (max. recommended) | 100 |
| Disk capacity (max) | Up to 72TB |
| Chassis | |
| Model | HPC-7242 |
| Format | Rack 2U |
| Dimensions | 426.4 x 88 x 525 mm |
| Mounting | Rack 19" |
| Motherboard | |
| Model | AIMB-788G2 |
| Processor | i7-13700 |
| RAM | 32 GB |
| Graphics | Integrated with processor |
| Video Ports | 1x VGA, 1x HDMI, 1x DisplayPort |
| Ethernet | 2 x RJ45 |
| Operating System | Windows 10 IoT 2021 LTSC |
| Storage | |
| System Disk | 256 GB (M.2 NVMe) |
| Storage | 4x 3,5” (hot-swap) |
| RAID | 0/1 software, hardware (optional) |
| Power Supply | |
| Power | 500W |
| Power supply redundancy | Optional |
