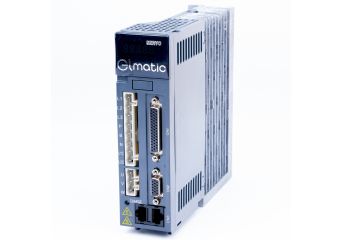

Servo Drive 0,4 kW

EMD100-40A-2

Pulse&Dir, Analog or manual control
The system's fast response allows for suppression of fluctuations caused by low inertia or stiffness
Precise positioning thanks to noise suppression functions
Simple to install and wiring
Miniaturization and low weight

Цена от €236.00 нетна цена

Висока цена? Влезте в профила си и купете на по-ниска

Изчерпан

Безплатна доставка от €100

Вижте 1 модел

Promocja cenowa na model HDR-15-5

Продукт, предназначен само за професионална употреба

Модели
Useful products
Описание
Техническа спецификация
Download
Препоръчани продукти

Servo Drive 0,4 kW

Модели

Модел	Наличност	Гаранция	Wishlist	Вашата цена	Вашата цена	Items Quantity Добави
EMD100-40A-2(00) Servo EPD: 400W, 1PH, STD	Наличен на склад	Гаранционен срок:		€236.00 €290.28 Влезте, за да проверите цената си	Влезте, за да проверите цената си	бр.

EMD100-40A-2(00)

Servo EPD: 400W, 1PH, STD

Наличност:

Наличен на склад

Нетна цена:

€236.00

Влезте, за да проверите цената си

Useful products

Servo Motor 0,4 kW

EMM-40A-B

Цена от €210.00 нетна цена

Наличен на склад

Вижте 2 модела

Описание

Elmatic servo drives are a budget solution for customers requiring dynamic and precise movement in applications. Servo drive with power from 0.1 to 11kW are designed for operation in a closed feedback loop with Elmatic servo motors and analog or pulse control using PLC or motion controllers. Full specification below.

Show specification

What makes Elmatic servo unique?

High dynamics: operating frequency of 1.3 kHz is a fast response of the system allowing suppression of fluctuations caused by low inertia or stiffness.
3-times overloading possibility.
High resolution encoder: motors are equipped with a built-in encoder with a resolution of 23 bits, which allows the detection of over 8 million different positions..
Attractive price: a motion control solution with wide possibilities while maintaining an attractive price.

Техническа спецификация

Input power supply

Main Circuit	1/3x187~242VAC
Control Circuit	1x200~230VAC

Control

Control Modes

Position, velocity, torque

Feedback

Incremental encoder: 2500, 5000 PPR

Absolute encoder: 17, 20, 23bit

Operating Conditions

Ambient Temperature	0 ~ +55°C
Storage Temperature	-25 ~ +85°C
Ambient/Storage Humidity	<90% RH (no condensation)
Vibration Resistance	4,9 m/s^2 (0,5g)
Impact Resistance	19,6 m/s^2 (2g)
Configuration	Wall mounted

I/O Signals

Encoder Dividing, Pulse Output	Phase-A, Phase-B, Phase-Z, line driver output
Digital Inputs	9
Digital Outputs	5

Other

Build-in regenerative resistor	Yes
Protection Functions	Overcurrent, overvoltage, low voltage, overload, regeneration error, overspeed
Display	5-segment LED (build-in operator panel)
Communication	Modbus RTU
