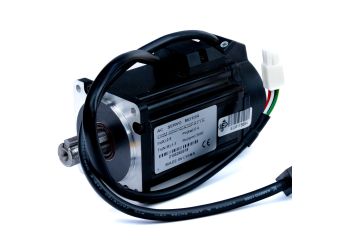

EMD100-10A-2
Цена от 226,00 € без данък
При поръчка до 15:00 ч., пратката ще бъде изпратена същия ден In stock
|
Each servo motor comes with a 3-meter power and encoder cable in the package. |
Производител: Elmatic
- rated torque 0,3 Nm (max. 1,1 Nm)
- rated speed 3000 RPM (max. 3500 RPM)
- absolute 23bit encoder
- IP65
- optional brake
Цена от 226,00 € без данък
High price? Log in and buy cheaper
Product out of stock
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
Servo Motor 0,1 kW
Models
Филтър: ()
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEMM-40KP10A30PAYYBMotor EPD: flange 40mm, 100W, 3000rpmIn stockWarranty: 226,00 €277,98 €Login to check your price EMM-40KP10A30PAYYBMotor EPD: flange 40mm, 100W, 3000rpmAvailability:In stockNet price:226,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEMM-40KP10A30PBYYBMotor EPD: flange 40mm, 100W, 3000rpm, BRKOut of stock Warranty: 372,00 €457,56 €Login to check your price EMM-40KP10A30PBYYBMotor EPD: flange 40mm, 100W, 3000rpm, BRKAvailability: Out of stockNet price:372,00 €
Useful products
Description
The wide power range of Elmatic servo motors allows them to be adapted to any size of machine. However, if the application requirements are higher, we offer planetary gears (LINK) that will significantly improve the performance of servo motors. Full motor specification later in the description.
What makes Elmatic servo unique?
- High dynamics: operating frequency of 1.3 kHz is a fast response of the system allowing suppression of fluctuations caused by low inertia or stiffness.
- 3-times overloading possibility.
- High resolution encoder: motors are equipped with a built-in encoder with a resolution of 23 bits, which allows the detection of over 8 million different positions..
- Attractive price: a motion control solution with wide possibilities while maintaining an attractive price.
Technical Specification
| Rated Output Power (kW) | 0,1 |
| Rated Torque (Nm) | 0,3 |
| Peak Torque (Nm) | 1,1 |
| Rated Current (A) | 0,9 |
| Rated Speed (RPM) | 3000 |
| Max. Speed (RPM) | 5000 |
| Rotor Moment of Inertia (with brake) (kg*cm^2) | 0,0665 |
| Insulation class | F |
| Enclosure | IP65 / NEMA4X |
Download
