Each servo motor comes with a 3-meter power and encoder cable in the package.

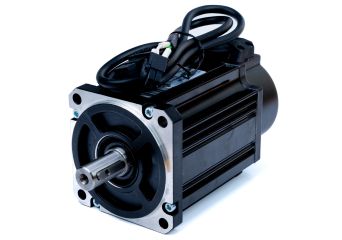

Servo Motor 0,75 kW

EMM-75A-B

Производител: Elmatic

rated torque 2,39 Nm (max. 7,16 Nm)
rated speed 3000 RPM (max. 3500 RPM)
absolute 23bit encoder
IP65
optional brake

Цена от 234,00 € без данък

High price? Log in and buy cheaper

In delivery

Безплатна доставка от €100

Вижте 6 модела

Promocja cenowa na model HDR-15-5

Продукт, предназначен само за професионална употреба

Models
Useful products
Description
Technical Specification
Download
Recommended Products

Servo Motor 0,75 kW

Models

Филтър: ()

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
EMM-80KP75A30PAYYB Motor EPD: flange 80mm, 750W, 3000rpm	In stock	Warranty:		234,00 € 287,82 € Login to check your price	Login to check your price	pcs.

EMM-80KP75A30PAYYB

Motor EPD: flange 80mm, 750W, 3000rpm

Availability:

In stock

Net price:

234,00 €

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
EMM-130SP85A15PAYYB Motor EPD: flange 130mm, 850W, 1500rpm	In stock	Warranty:		434,00 € 533,82 € Login to check your price	Login to check your price	pcs.

EMM-130SP85A15PAYYB

Motor EPD: flange 130mm, 850W, 1500rpm

Availability:

In stock

Net price:

434,00 €

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
EMM-90KP75A30PAYYB Motor EPD: flange 90mm, 750W, 3000rpm	In stock	Warranty:		245,00 € 301,35 € Login to check your price	Login to check your price	pcs.

EMM-90KP75A30PAYYB

Motor EPD: flange 90mm, 750W, 3000rpm

Availability:

In stock

Net price:

245,00 €

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
EMM-90KP73A20PAYYB Motor EPD: flange 90mm, 730W, 2000rpm	In stock	Warranty:		272,00 € 334,56 € Login to check your price	Login to check your price	pcs.

EMM-90KP73A20PAYYB

Motor EPD: flange 90mm, 730W, 2000rpm

Availability:

In stock

Net price:

272,00 €

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
EMM-80KP75A30PBYYB Motor EPD: flange 80mm, 750W, 3000rpm, BRK	Out of stock	Warranty:		380,00 € 467,40 € Login to check your price	Login to check your price	pcs.

EMM-80KP75A30PBYYB

Motor EPD: flange 80mm, 750W, 3000rpm, BRK

Availability: Out of stock

Net price:

380,00 €

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
EMM-90KP75A30PBYYB Motor EPD: flange 90mm, 750W, 3000rpm, BRK	In stock	Warranty:		391,00 € 480,93 € Login to check your price	Login to check your price	pcs.

EMM-90KP75A30PBYYB

Motor EPD: flange 90mm, 750W, 3000rpm, BRK

Availability:

In stock

Net price:

391,00 €

Useful products

Servo Drive 0,75 kW

EMD100-75A-2

Цена от 266,00 € без данък

In stock

Вижте 1 модел

Description

The wide power range of Elmatic servo motors allows them to be adapted to any size of machine. However, if the application requirements are higher, we offer planetary gears (LINK) that will significantly improve the performance of servo motors. Full motor specification later in the description.

Show technical specification

What makes Elmatic servo unique?

High dynamics: operating frequency of 1.3 kHz is a fast response of the system allowing suppression of fluctuations caused by low inertia or stiffness.
3-times overloading possibility.
High resolution encoder: motors are equipped with a built-in encoder with a resolution of 23 bits, which allows the detection of over 8 million different positions..
Attractive price: a motion control solution with wide possibilities while maintaining an attractive price.

Technical Specification

Rated Output Power (kW)	0,75
Rated Torque (Nm)	2,39
Peak Torque (Nm)	7,16
Rated Current (A)	4,4
Rated Speed (RPM)	3000
Max. Speed (RPM)	3500
*Rotor Moment of Inertia (with brake) (kgcm^2)**	0,9
Insulation class	F
Enclosure	IP65 / NEMA4X
