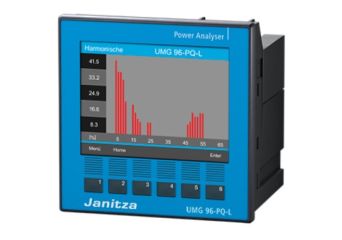

UMG 96-PQ-L

Whether it's power quality analysis, differential current monitoring or temperature monitoring, the UMG 96-PQ-L offers the right functions for every application. With the UMG 96-PQ-L, it is now possible to cost-effectively provide full power quality transparency at every level, thereby avoiding system failures.

Full-period event measurements can be displayed and analyzed directly on the display. In addition, the modular network offers a large memory that provides several years of storage thanks to a special data compression method.

Storage partitioning allows long-term storage of current and power data, and enables high-resolution power quality measurements to be combined. This method of data storage makes it possible to increase the amount of information stored while keeping hardware costs low.

Available values can be easily displayed and presented graphically on a color display. In addition, the UMG 96-PQ-L offers plug-in modules for functional extensions and 50 configurable comparators that can be customized or use predefined profiles.

S-class versions of the UMG 96-PQ-L offer additional features, including flicker or interharmonic detection, to meet EN 50160 and IEEE519 requirements. It is also possible to activate these features later, even after the device has been purchased.

QUALITY OF ENERGY

• Harmonic current up to the 65th harmonic
• High sampling rate with 280 sampling points per full waveform
• Digital input event capture rate of 1 ms
• RMS value memory 20 ms

VISUALIZATION

• Oscilloscope function
• Phasor diagram on the display
• Drag indicator history on the display
• Reset resistance indicators via display or remotely

INSTALLATION AND INTEGRATION

• Overvoltage category 600 V CAT III
• Easy installation with front panel measuring 96 x 96 mm
• Use in IT networks with variants 52.36.005
• Time setting with third-party systems in accordance with DIN 60970-5-4

ENERGY MANAGEMENT

• Identify savings potential
• Active energy class 0.2S#
• Compliance with regulatory and tax requirements
• Configurable screened averages

MEMORY

• Large memory depth with low memory requirements
• Storage depth of up to 15 years with 23 measured values at 15 minutes each and 8 measured values at 1 hour each
• Memory partitioning into long-term memory and high-resolution short-term PQ memory

PERIPHERAL DEVICES

• 3 digital outputs
• 1 analog output
• 3 digital inputs

COMMUNICATION

• Modbus Client/Server gateway functionality
• Gateway function
• Ethernet interface
• RS485
• 5 simultaneous Modbus TCP connections

OPERATION

• Operation of 6 buttons on color graphic display
• Intuitive operation
• Configuration directly on the display
• On-site and remote operation with GridVis®
• Configurable home screen and return point

MODULARITY

• Temperature measurement with monitoring via integrated comparator
• Ethernet interface and Modbus gateway
• Multifunctional inputs for differential current or DC power measurement
• Neutral conductor measurement (I4 - current measurement)

COMPARATOR

• 50 comparators in the device
• Hysteresis
• Predefined comparison profiles for quick configuration (GridVis®)

CLASS S

• Flicker
• Interharmonics
• Standards-compliant PQ data based on, for example, EN 50160 and IEEE519
• Rapid voltage variation
• Overfrequency and underfrequency
• Predefined recording profiles for EN 50160, IEEE519,61000-2-4, AHF and SVG

EVENTS

• Representation on the display
• Read the last event via Modbus
• Display mean square value curves in the GridVis® event viewer
