- 8 channel actuator in a compact size
- Suitable for various and mixed applications
- For AX, C-load, capacitive & inductive of loads
- Program via ETS5.0 software
- Manual control via Push button
- Programmable various time and scene function
High price? Log in and buy cheaper
Направете поръчката до 12:00 часа, пратката ще бъде изпратена на същия ден
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddKAA-8R-16SKNX universal actuator with Data SecureIn stockWarranty: 176,50 €217,10 €Login to check your price KAA-8R-16SKNX universal actuator with Data SecureAvailability:In stockNet price:176,50 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddKAA-8R-10SKNX universal actuator with Data SecureIn stockWarranty: 113,10 €139,11 €Login to check your price KAA-8R-10SKNX universal actuator with Data SecureAvailability:In stockNet price:113,10 €
Description

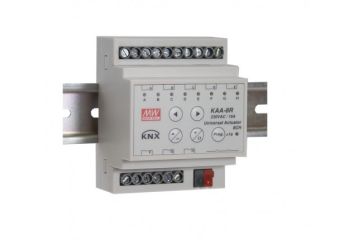

The KNX actuator is a 8 channel device with high quality independent latching relay for switch, shutter or any possible mixed applications. The compact design with 4 units (72 mm) wide modular makes it suitable for installation in the distribution board on 35 mm mounting rails in the EIB / KNX application. The connection to the KNX bus is implemented via a bus connection terminal.The switching relays are particularly suitable for switching ohmic loads, capacitive loads, for instance LED drivers and inductive loads as well as motors in shutter or blind applications. The actuator are powered via the EIB / KNX and do not require any additional power supply.
Available models:
- KAA-8R
- KAA-8R-10
Technical Specification
KAA-8R: DETAILS
