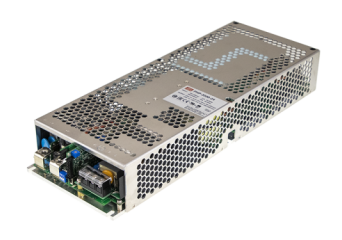

PHP-3500
Conduction Cooling power supply: PHP-3500-24, PHP-3500-48, HS-656
- Slim and Low profile (60mm)
- Fanless design, cooling by water conduction
- Built-in active PFC function
- -30~+70°C working temperature
- Built-in PMBus communication protocol, CANbus optional
- Output voltage and constant current level programmable
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Built-in remote ON-OFF control
- DC OK active signal
- Optional cold plate for quick implementation
- OVC III Operating altitude up to 3000 meter (Note.9)
- LED indicator for power on
- High efficiency up to 96%
- Active current sharing up to 14000W (3+1)
Висока цена? Влезте в профила си и купете на по-ниска
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
PHP-3500
Модели
-
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиPHP-3500-24switching power supply 3500W 24V 145AПри доставка Гаранционен срок: 942,60 €1159,40 €Влезте, за да проверите цената си PHP-3500-24switching power supply 3500W 24V 145AНаличност: При доставкаНетна цена:942,60 € -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиPHP-3500-48switching power supply 3500W 48V 73AИзчерпан Гаранционен срок: 942,60 €1159,40 €Влезте, за да проверите цената си PHP-3500-48switching power supply 3500W 48V 73AНаличност: ИзчерпанНетна цена:942,60 €
Аксесоари
-
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиWHS-656cooling plate for PHP-3500Изчерпан Гаранционен срок: 162,80 €200,24 €Влезте, за да проверите цената си WHS-656cooling plate for PHP-3500Наличност: ИзчерпанНетна цена:162,80 €
Описание
PHP-3500 series is a 3500W single-output slim type power supply with 60mm of low profile design. Adopting the full range 90~264VAC input, the entire series provides an output voltage line of 24V and 48V. In addition to the high efficiency up to 96%, that the whole series operates from -30°C ~+70°C under air convection without fan. PHP-3500 has the complete protection functions and 2G anti-vibration capability; it complies with the international safety regulations such as TUV EN62368-1, UL62368-1 and design refers to EN61558-1 and EN60335-1. PHP-3500 series serves as a high performance power supply solution for various industrial applications.
Available models:
- 24V: PHP-3500-24
- 48V: PHP-3500-48
Техническа спецификация
PHP-3500: 2500.8W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Dimension |
| PHP-3500-24 | 24V, 0~145A | +/-1% | 300mV | 95% | 380x141,4x60mm |
| PHP-3500-48 | 48V, 0~73A | +/-1% | 480mV | 96% | 380x141,4x60mm |
