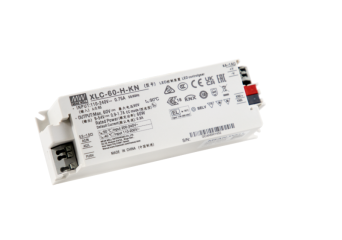

XLC-60KN
Constant power LED drivers with KNX interface
- Constant power mode output with multiple stage selectable by ETS database (KNX)
- KNX/EIB protocol, support KNX data secure
- Plastic housing with class II and PFC design
- Flicker free, complying with CE ErP directive
- Standby power consumption <0.5W
- Meet emergency lighting (EL) function application
- Minimum dimming level 0.5%
- Function:operation hours,power consumption feedback, log/linear curve selection ... etc
- 5 years warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Цена от 44,60 € нетна цена
Висока цена? Влезте в профила си и купете на по-ниска
Изчерпан
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
XLC-60KN
Модели
-
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиXLC-60-H-KNLED driver 60W 9~54V 0.9~1.7A KNXИзчерпан Гаранционен срок: 44,60 €54,86 €Влезте, за да проверите цената си XLC-60-H-KNLED driver 60W 9~54V 0.9~1.7A KNXНаличност: ИзчерпанНетна цена:44,60 € -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиXLC-60-H-KNSLED driver 60W 9~54V 0.9~1.7A KNXИзчерпан Гаранционен срок: 44,60 €54,86 €Влезте, за да проверите цената си XLC-60-H-KNSLED driver 60W 9~54V 0.9~1.7A KNXНаличност: ИзчерпанНетна цена:44,60 €
Описание
XLC-60-KN Series is a 60W with constant power output LED driver. It can operate from 100~305VAC and output current ranging between 900 mA to 1700 mA selectable by ETS database. The integrate KNX interface avoids using the compliated KNX-DALI gateway. Thanks to high efficiency up to 90%, it is able to operate for -25℃~90℃ case temperature under free air convection. XLC-60-KN is designed based on latest safety regulations and provides more flexibility for LED Lighting application.
Техническа спецификация
- XLC-60KN: 60W LED driver series with KNX interface → Manufacturer documentation
| Model | Input voltage | Output parameters | Output current tolerance | Efficiency | Dimension (LxWxH) |
| XLC-60-H-KN XLC-60-H-KNS |
100~305VAC 141~400VDC |
9~54 V, 900-1700 mA typ. 900 mA |
±5% | 90% | KN: 136x45x32mm KNS: 176x45x32mm |
