XLC-40MA
Constant power LED drivers with wireless dimming
- Matter over thread, Matter 1.3 specification
- Constant power mode output with multiple stage selectable by DIP switch
- Plastic housing with class II and PFC design
- Flicker free, complying with CE ErP directive
- Standby power consumption <0.5W
- Meet emergency lighting (EL) application
- Minimum dimming level 0.5%
- 5 years warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Цена от €31.30 нетна цена
Висока цена? Влезте в профила си и купете на по-ниска
Изчерпан
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба

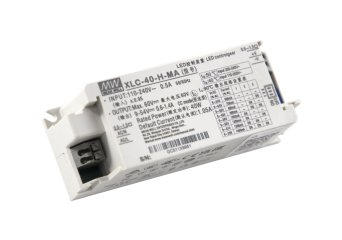

XLC-40MA
Модели
-
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиXLC-40-H-MALED driver 25W 9~54V 0.3~1.05AИзчерпан Гаранционен срок: €31.30€38.50Влезте, за да проверите цената си XLC-40-H-MALED driver 25W 9~54V 0.3~1.05AНаличност: ИзчерпанНетна цена:€31.30 -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиXLC-40-H-MASLED driver 25W 9~54V 0.3~1.05AИзчерпан Гаранционен срок: €31.30€38.50Влезте, за да проверите цената си XLC-40-H-MASLED driver 25W 9~54V 0.3~1.05AНаличност: ИзчерпанНетна цена:€31.30
Описание
XLC-40-MA series is a 40W with constant power output LED driver. It can operate from 100~305VAC and output current ranging between 600 mA to 1400 mA selectable by DIP switch. Thanks to high efficiency up to 88%, it is able to operate for -25℃~85℃ case temperature under free air convection. XLC-40-MA series is designed based on latest safety regulations with Matter wireless dimming. It provides more flexibility for LED Lighting application.
Техническа спецификация
- XLC-40MA: 40W driver series with wireless diming → Manufacturer documentation
| Model | Input volatage | Output parameters | Output current tolerance | Efficiency | Dimension (LxWxH) |
| XLC-40-H-MA | 100~305VAC, 141~400VDC |
9~54 V, 600-1400 mA, typ. 1050 mA |
± 5% | 88% | 107x40x32mm |
| XLC-40-H-MAS | 100~305VAC, 141~400VDC |
9~54 V, 600-1400 mA, typ. 1050 mA |
± 5% | 88% | 147x40x32mm |
