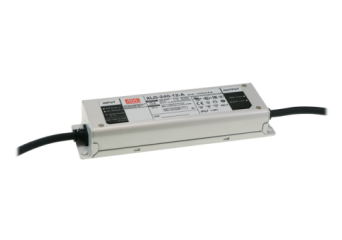

XLG-240

Constant power LED power supply: XLG-240-H-A, XLG-240-H-AB, XLG-240-L-A, XLG-240-L-AB, XLG-240-M-A, XLG-240-M-AB

  • Wide input range 100~305V AC( Class I)
  • Full power output at 70-100% Constant power mode operation
  • Metal case with IP67, suitable for outdoor application
  • Surge protection with 6KV/4KV (10KV/6KV optional)
  • 3 in 1 dimming function (Dim to off and Isolation design)
  • DALI-2 models (DA2)
  • Protection functions: OVP/SCP/OCP/OTP
  • Life time >50,000 hrs.
Цена от 36,80 € нетна цена

Висока цена? Влезте в профила си и купете на по-ниска

Наличен на склад

Поръчайте до 12:00 и ще бъде изпратен в рамките на деня

Безплатна доставка от €100

Вижте 9 модела

Promocja cenowa na model HDR-15-5

Продукт, предназначен само за професионална употреба
MEAN WELL XLG-240 stałomocowy zasilacz LED

XLG-240

Модели

Описание

XLG-240 series is a 240W LED AC/DC driver featuring the constant power mode. XLG-240 operates 100~305VAC and offers models with different rated current ranging between 700mA and 6.66A. Thanks to the high efficiency up to 93%, with the fanless design, the entire series is able to operate for -40C ~ +90C temperature under free air convection.

The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. Moreover the innovative environment-adaptive capability allows this series to reliably light on the LEDs for all kinds of application environments in almost any spots that may install LED luminaires in the world. XLG-240 is designed with the latest version of IEC61347/GB7000.1-2015 and UL8750 international safety regulations. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the user and luminaire system safety durng installation.

Available models:

  • XLG-240-H-A
  • XLG-240-H-AB
  • XLG-240-L-A
  • XLG-240-L-AB
  • XLG-240-M-A
  • XLG-240-M-AB
  • XLG-240-L-DA2
  • XLG-240-M-DA2
  • XLG-240-H-ADA

Техническа спецификация

Model Output Tolerance Efficiency Dimensions
XLG-200-L 178~342V, 700-1050mA +/-4% 93% 219x63x35.5mm
XLG-200-M 90~171V, 1400-2100mA +/-4% 92,5% 219x63x35.5mm
XLG-200-H 27~56V, 4280-6660mA +/-4% 91% 219x63x35.5mm
XLG-200-L-DA2 178~342V, 350-1050mA +/-4% 94% 219x63x35.5mm
XLG-200-M-DA2 90~171V, 700-2100mA +/-4% 94,5% 219x63x35.5mm
XLG-200-H-DA2 27~56V, 2400-6660mA +/-4% 93% 219x63x35.5mm
