XLG-50

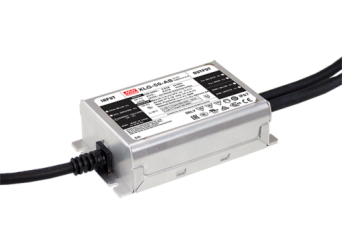

Constant power LED power supply: XLG-50-A, XLG-50-AB
- Constant Power mode output
- Metal housing design with functional Ground
- Built-in active PFC function
- CLass 2 power unit
- DALI-2 models
- No load / Standby power consumption < 0.5W
- IP67 rating for indoor or outdoor installations
- Function options: output adjustable via potentiometer, 3 in 1 dimming function (Dim to off and Isolation design)
- Typical lifetime > 50 000 hours
Висока цена? Влезте в профила си и купете на по-ниска
Поръчайте до 12:00 и ще бъде изпратен в рамките на деня
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
Модели
-
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиXLG-50-ALED driver 50W 22~54V 0.53~2.1AНаличен на складГаранционен срок: 18,00 €22,14 €Влезте, за да проверите цената си XLG-50-ALED driver 50W 22~54V 0.53~2.1AНаличност:Наличен на складНетна цена:18,00 € -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиXLG-50-ABLED driver 50W 22~54V 0.53~2.1AНаличен на складГаранционен срок: 20,60 €25,34 €Влезте, за да проверите цената си XLG-50-ABLED driver 50W 22~54V 0.53~2.1AНаличност:Наличен на складНетна цена:20,60 € -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиXLG-50-L-DA2LED driver 50W 60~142V 0.3~0.7A DALI2Изчерпан Гаранционен срок: 25,70 €31,61 €Влезте, за да проверите цената си XLG-50-L-DA2LED driver 50W 60~142V 0.3~0.7A DALI2Наличност: ИзчерпанНетна цена:25,70 € -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиXLG-50-H-DA2LED driver 50W 27~56V 0.5~1.4A DALI2Наличен на складГаранционен срок: 25,70 €31,61 €Влезте, за да проверите цената си XLG-50-H-DA2LED driver 50W 27~56V 0.5~1.4A DALI2Наличност:Наличен на складНетна цена:25,70 €
Описание
XLG-50 series is a 50W AC//DC LED driver featuring the constant power mode output. XLG-50 operates from 90~305VAC. Thanks to the high efficiency up to 90%, the entire series is able to operate between -40C ~ +90C wide temperature range with air convection. The design of metal housing and IP67 protection level allows this series to fit both indoor and outdoor applications. XLG-50 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system. XLG-50 series comply with the latest version of IEC61347/GB7000.1-2015 and UL8750 international safety regulations. The output and dimming curcuit are also completely in accordance with the new regulations with isolation to ensure the safety of both user and luminaire system during installation.
Available models:
- XLG-50-A
- XLG-50-AB
- XLG-50-L-DA2
- XLG-50-H-DA2
Техническа спецификация
- XLG-50: 50W (SPECIFICATION)
| Model | Wyjście | Tolerancja | Wydajność | Wymiary |
| XLG-50 | 22~54V, 530-2100mA | +/-5% | 90% | 105x63x30mm |
| XLG-50-H-DA2 | 27~56V, 500-1400mA | +/-5% | 90% | 105x63x30mm |
| XLG-50-L-DA2 | 60~142V, 350-700mA | +/-5% | 89% | 105x63x30mm |
