DBUF40

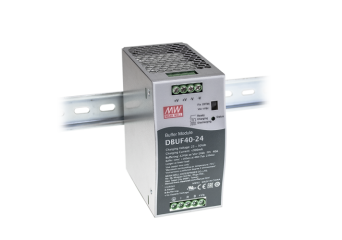

DIN Rail Buffer Module: DBUF40-24
- Buffering with electrolytic capacitors instead of lead acid batteries
- Type buffering time of 250ms @22Vdc/40A
- Buffer mode selectable by switch:
- Fixed mode at 22Vdc
- Dynamic mode for Vin-1Vdc
- LED indicator for signal status
- Supports parallel connection to extend buffering time
- Cooling by free air convection
- -25~+75ºC wide operating temperature
Цена от €114.80 нетна цена
Висока цена? Влезте в профила си и купете на по-ниска
Наличен на склад
Поръчайте до 12:00 и ще бъде изпратен в рамките на деня
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
Модели
-
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиDBUF40-24power supply buffer module 24V 40AНаличен на складГаранционен срок: €114.80€141.20Влезте, за да проверите цената си DBUF40-24power supply buffer module 24V 40AНаличност:Наличен на складНетна цена:€114.80
Описание
The DBUF40-24 buffer module is a supplementary device for regulated DC 24V power supplies. The buffer module utilizes maintenance-free electrolytic capacitors to store energy,thus eliminates the need of periodic replacement as compared to costlier batteries which also have shorter functional life span. The DBUF40-24 comes with comprehensive protection features like over voltage, over current and short circuit protections.Buffer modules can be connected in parallel to increase the output ampacity or the hold-up time.
Available models:
- 24V: DBUF40-24
Техническа спецификация
DBUF20-24 DETAILS
| Model | Operating voltage | Charging time | Hold-up time | Signal inputs and outputs | Dimension |
| DBUF20-24 | 22-29 VDC | max. 25s | up to 60s (depending on load) | Ready / Buffering / Inhibit | 63x125.2x114.9mm |
